How can I get a price quote for Festo VHEF-EST-B32-G14?

You can request a fast quote for Festo VHEF-EST-B32-G14 from Yılsa Engineering. Reference part number YLSAMYLBNDQZ6T. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VHEF-EST-B32-G14 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VHEF-EST-B32-G14 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VHEF-EST-B32-G14?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

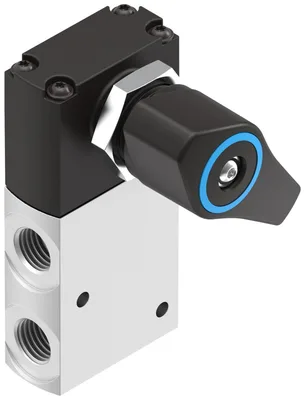

Festo VHEF-EST-B32-G14

Selector valve. Durable thanks to tried-and-tested piston slide and disc seat valve technology. Robust metal housing. Attractive price. Ergonomic and safe operation. Minimal actuating forces. Modern design. Reverse operation possible

FestoMFR # VHEF-EST-B32-G14SKU # YLSAMYLBNDQZ6T

Valve function3/2-way, double solenoid

Type of actuationManual

Construction width20

pneumatic working portG1/4

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Have questions?Chat on WhatsApp

About This Product

Festo VHEF-EST-B32-G14

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, double solenoid

Type of actuationManual

Construction width20

Standard nominal flow rate (standardised to DIN 1343)870

pneumatic working portG1/4

Operating pressure-0.095, 1

Operating pressure-0.95, 10

DesignPoppet seat

Nominal size6

Exhaust-air functionCan be throttled

Instructions on useActuate manually only

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting

Type of pilotingDirect

Flow directionReversible

Symbol00995892

lapZero lap

Max. switching frequency0.5

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-10, 60

Actuating torque0.4

Max. force on actuation200

Max. lateral force on actuation200

Product weight200

Type of mountingWith through-hole

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4

Note on materialsRoHS compliant

Material coverReinforced PA

Material sealsNBR

Material housingAnodised wrought aluminium alloy

Material leverReinforced PA

Accessories 25

Genuine accessories that can be used with the Festo VHEF-EST-B32-G14 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-10X1,5-SW	Plastic tubing · Tubes
U-1/4	Silencer · Silencer
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
U-1/4-20	Silencer · Silencer
QS-G1/4-10	Push-in fitting · Fittings
QS-G1/4-10-I	Push-in fitting · Fittings
QSL-G1/4-10	Push-in L-fitting · Fittings
QSLL-G1/4-10	Push-in L-fitting, long · Fittings
U-1/4-B	Silencer · Silencer
QSL-G1/4-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/4-8-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-10-50	Push-in L-fitting · Push-in fittings
QSL-G1/4-12-20	Push-in L-fitting · Push-in fittings
QSLL-G1/4-12	Push-in L-fitting, long · Push-in fittings
QSL-G1/4-6	Push-in L-fitting · Push-in fittings
QSL-G1/4-8	Push-in L-fitting · Push-in fittings
QSLL-G1/4-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/4-8	Push-in L-fitting, long · Push-in fittings
QSL-V0-G1/4-6	Push-in L-fitting · Push-in fittings
QSL-V0-G1/4-8	Push-in L-fitting · Push-in fittings
QSL-V0-G1/4-10	Push-in L-fitting · Push-in fittings
QSL-V0-G1/4-12	Push-in L-fitting · Push-in fittings
QSL-G1/4-12	Push-in L-fitting · Push-in fittings
