How can I get a price quote for Festo VEVM-S1-27-B-C-F-1T1L?

You can request a fast quote for Festo VEVM-S1-27-B-C-F-1T1L from Yılsa Engineering. Reference part number YLSAKBP7PCMP8OC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VEVM-S1-27-B-C-F-1T1L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VEVM-S1-27-B-C-F-1T1L genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VEVM-S1-27-B-C-F-1T1L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

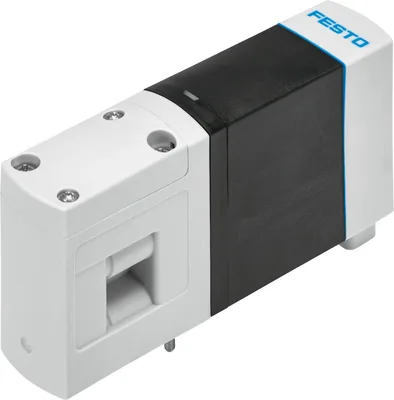

Festo VEVM-S1-27-B-C-F-1T1L

Valve. Functionality can be assigned via Motion app. For Motion Terminal VTEM. Consisting of 4 wired piezo pilot-controlled piston seat valves. Extremely long service life. Very low power consumption. Low leakage with the function of a proportional-pressure regulator

FestoMFR # VEVM-S1-27-B-C-F-1T1LSKU # YLSAKBP7PCMP8OC

Valve size27

Grid dimension28

Symbol00995604

Valve functionTo be assigned via Motion App

DesignPiston seat

Sealing principleSoft

Have questions?Chat on WhatsApp

About This Product

Festo VEVM-S1-27-B-C-F-1T1L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve size27

Grid dimension28

Symbol00995604

Valve functionTo be assigned via Motion App

DesignPiston seat

Sealing principleSoft

Type of actuationElectrical

Type of pilotingPiloted

Type of resetMechanical spring

Mounting positionAny

Exhaust-air functionCannot be throttled

Pilot air supplyExternal

Suitability for vacuumYes

Flow directionNon-reversible

Degree of protectionIP65

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Material housingPA

Material sealsNBR, TPE-U(PU)

Fire test materialUL94 HB

Suitable for use with foodSee supplementary material information

Product weight200

Switching time on8.5

Switching time off8.5

Nominal size4.2

C value2

Standard flow rate 0.8->0 MPa (8->0 bar, 116->0 psi)1000

Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi)450

Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)480

Status indicationBlue LED = normal status, Red LED = malfunction

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation not possible, Condensation in the valve not allowed

Operating pressure0.3, 0.8

Operating pressure3, 8

Operating pressure43.5, 116

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Pilot pressure43.5, 116

Note on operating pressure0 - 8 bar with external pilot air, Vacuum operation at connection 3 only

Nominal operating voltage DC24

Permissible voltage fluctuations+/-25%

Duty cycle100%

Electrical power consumption1.5

Corrosion resistance class CRC2 - Moderate corrosion stress

Storage temperature-20, 40

Media temperature5, 50

Ambient temperature5, 50

Relative air humidity0 - 90%

Pneumatic connection, port 2G1/8

Pneumatic connection, port 4G1/8

Pilot air port 14M5

Pneumatic connection, port 1G3/8

Pneumatic connection, port 3G3/8

Pilot exhaust port 84M7

Breather connectionM7
