How can I get a price quote for FESTO VBOH-32-G34?

You can request a fast quote for FESTO VBOH-32-G34 from Yılsa Engineering. Reference part number CEY-937FC781AD95. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VBOH-32-G34 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VBOH-32-G34 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VBOH-32-G34?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

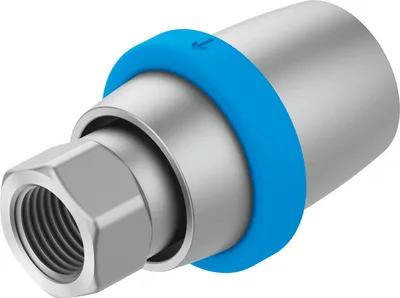

FESTO VBOH-32-G34

Hand slide valve. Used as a shut-off function for pressurising and exhausting compressed air systems, for example upstream of service units, for air guns and also for exhausting pneumatic cylinders. Non-overlapping, so no pressure losses when switching. Minimal installation effort

FESTOMFR # VBOH-32-G34SKU # CEY-937FC781AD95

Valve function3/2-way, double solenoid

Pneumatic connection, port 1G3/4

Pneumatic connection, port 2G3/4

Type of actuationManual

Type of mountingScrew-in

Nominal size19.3

Have questions?Chat on WhatsApp

About This Product

FESTO VBOH-32-G34

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, double solenoid

Pneumatic connection, port 1G3/4

Pneumatic connection, port 2G3/4

Type of actuationManual

Type of mountingScrew-in

Standard nominal flow rate (standardised to DIN 1343)7691

Nominal size19.3

Operating pressure-0.095, 1.2

Operating pressure-0.95, 12

Ambient temperature-10, 80

Material housingAnodised wrought aluminium alloy

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Grid dimension57.5

Instructions on usePlease only screw in fittings with a cylindrical thread. Mounting conical threads can damage the housing and cause clamping or malfunction of the sleeve.

Sealing principleSoft

Mounting positionAny

DesignSleeve valve

Type of pilotingDirect

Symbol00991286

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-10, 80

Actuating force70

Product weight183

Material screwed plugAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealsNBR

Accessories 5

Genuine accessories that can be used with the FESTO VBOH-32-G34 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G3/4-22	Push-in fitting · Fittings
N-3/4-P-13	Barbed hose fitting · Other connectors
N-3/4-P-19	Barbed hose fitting · Other connectors
N-3/4-P-13-MS	Barbed hose fitting · Other connectors
N-3/4-P-19-MS	Barbed hose fitting · Other connectors
