How can I get a price quote for Festo VBOC-L2-S7-P-M8-G18-E?

You can request a fast quote for Festo VBOC-L2-S7-P-M8-G18-E from Yılsa Engineering. Reference part number YLSIH6UL5V4GRRA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VBOC-L2-S7-P-M8-G18-E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VBOC-L2-S7-P-M8-G18-E genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VBOC-L2-S7-P-M8-G18-E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

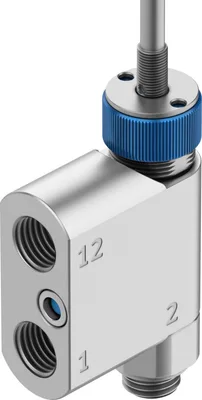

Festo VBOC-L2-S7-P-M8-G18-E

Shut-off valve. 2/2-way valve for direct mounting on the cylinder with switching position monitoring. Suitable for safety functions according to DIN 13849. Extremely sturdy in the event of pressure surges from the cylinder. Optional: fully integrated additional functions. Pneumatically actuated

FestoMFR # VBOC-L2-S7-P-M8-G18-ESKU # YLSIH6UL5V4GRRA

Valve function2/2-way, single solenoid, closed

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Type of actuationPneumatic

Type of mountingScrew-in, With male thread

Operating pressure0.05, 1

Have questions?Chat on WhatsApp

About This Product

Festo VBOC-L2-S7-P-M8-G18-E

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2/2-way, single solenoid, closed

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Type of actuationPneumatic

Type of mountingScrew-in, With male thread

Nominal flow rate standardised according to ISO 8778290

Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) in according to ISO 8778500

Nominal flow rate 2->1 normalised according to ISO 8778330

Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 2->1 according to ISO 8778500

Operating pressure0.05, 1

Operating pressure0.5, 10

Ambient temperature-5, 60

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Mounting positionAny

Selection of additional function 2Manual exhausting

Special characteristicsResistant to welding spatter

Type of seal on screwed plugSealing ring

Manual overrideDetenting

Type of resetMechanical spring

Pilot air supplyExternal

Manual exhaust functionNon-detenting

Symbol00997516

Measuring principleInductive

Switching element functionN/C contact

Rotatability360°/no continuous swivelling permissible

Reverse polarity protection sensorFor all electrical connections

Note on forced dynamizationCurrent information on this topic can be found in Technical Report V

Switching position sensingNormal position with sensor

Switch-off pressure0.05, 0.2

Switch-on pressure0.15, 0.4

Pneumatic off range0.04

Pilot pressure0.2, 1

Pilot pressure2, 10

Pilot pressure29, 145

Switching time off15

Switching time on8

Nominal operating voltage DC24

Switching outputPNP

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Media temperature-5, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Nominal torque6

Tolerance for nominal tightening torque±20%

Product weight57

Operating voltage range, DC sensor10, 30

Short-circuit strength sensorYes

Idle current sensor10

Max. output current sensor200

Voltage drop sensor3

Electrical connection 1, functionSwitching output

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, used connections/cores3

Electrical connection 1, connection pattern00991155

Cable length0.3

Pilot air port 12G1/8

Note on materialsRoHS compliant

Material sealsHNBR, NBR, TPE-U(PU)

Material hollow boltWrought aluminium alloy

Material cable sheathPVC

Knurled nut materialWrought aluminium alloy

Material swivel fittingWrought aluminium alloy

Material sensor bracketHigh-alloy stainless steel

Locking nut materialHigh-alloy stainless steel

Accessories 6

Genuine accessories that can be used with the Festo VBOC-L2-S7-P-M8-G18-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-6X1-NT	Plastic tubing · Tubes
QSF-1/8-6-B	Push-in fitting · Fittings
PUN-H-6X1-BL	Plastic tubing · Tubes
QS-G1/8-6	Push-in fitting · Fittings
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
