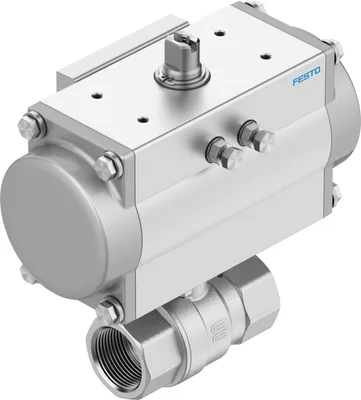

Festo VAPB-A-1/2-F-40-F03-PB20

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VAPB-A-1/2-F-40-F03-PB20

Ball valve unit. Ball valve actuator unit with double-acting quarter turn actuatorDFPD. Brass ball valve. NAMUR connection pattern for solenoid valves/limit switch attachments to VDI/VDE 3845. Flow is fully opened or closed in both directions

FestoMFR # VAPB-A-1/2-F-40-F03-PB20SKU # YLSVETIPNPFTG9K
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1/2
Share
Have questions?Chat on WhatsApp

About This Product

Ball valve unit. Ball valve actuator unit with double-acting quarter turn actuatorDFPD. Brass ball valve. NAMUR connection pattern for solenoid valves/limit switch attachments to VDI/VDE 3845. Flow is fully opened or closed in both directions

Festo VAPB-A-1/2-F-40-F03-PB20

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1/2
Switching position indicatorSlot direction = flow direction
Flange hole patternF03
Nominal size DN15
Valve function2/2
Flow directionReversible
Operating pressure0.55, 0.8
Operating pressure5.5, 8
Operating pressure79.75, 116
Nominal pressure PN40
Breakaway torque at differential pressure, nominal pressure, process valve PN5
Based on standardISO 5211
Symbol00992011
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10, 200
Flow rate Kv17
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingBrass, nickel-plated
Material number housing2,0402, CW617N
Material seat sealPTFE
Material sealsHNBR, PTFE
Material ballBrass, Hard chrome-plated
Material number ball2,0401, CW614N
Material shaftBrass
Material number shaft2,0401, CW614N
Product weight1820
Corrosion resistance class CRC1 - Low corrosion stress
