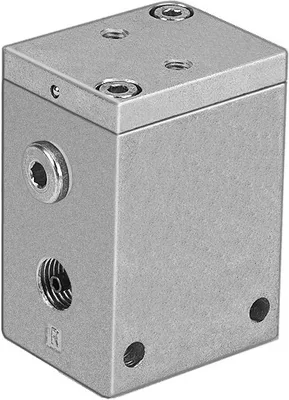

Festo VAK-1/4

Vacuum generator. Sturdy aluminium housing for direct connection of a suction cup

FestoMFR # VAK-1/4SKU # CEY-937FC78279FD

Nominal size, Laval nozzle1

Mounting positionAny

Ejector characteristicHigh vacuum

Integrated functionejector pulse, pneumatic

DesignT-shape

Symbol00991484

Have questions?Chat on WhatsApp

About This Product

Vacuum generator. Sturdy aluminium housing for direct connection of a suction cup

Festo VAK-1/4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle1

Mounting positionAny

Ejector characteristicHigh vacuum

Integrated functionejector pulse, pneumatic

DesignT-shape

Symbol00991484

Operating pressure0.15, 1

Operating pressure1.5, 10

Operating pressure21.75, 145

Max. vacuum80

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-20, 80

Ambient temperature-20, 80

Type of mountingWith through-hole

Pneumatic connection, port 1G1/4

Pneumatic connection, port 3G1/4

Vacuum connectionG1/4

Material housingDie-cast aluminium

Accessories 45

Genuine accessories that can be used with the Festo VAK-1/4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-10X1,5-SW	Plastic tubing · Tubes
VAS-40-1/4-PUR-B	Suction cup with connection · General accessories
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
QS-G1/4-10-I	Push-in fitting · Fittings
PUN-H-10X1,5-BL	Plastic tubing · Tubes
QSL-G1/4-10	Push-in L-fitting · Fittings
U-1/4	Silencer · Silencer
QS-G1/4-10	Push-in fitting · Fittings
CK-1/4-PK-4	Quick connector · Quick connectors
CK-1/4-PK-6	Quick connector · Quick connectors
CK-1/4-PK-9	Quick connector · Quick connectors
CK-1/4-PK-4-KU	Quick connector · Quick connectors
CK-1/4-PK-6-KU	Quick connector · Quick connectors
CK-1/4-PK-9-KU	Quick connector · Quick connectors
U-1/4-B	Silencer · Silencer
CN-1/4-PK-4	Barbed fitting · Barbed fittings
CN-1/4-PK-6	Barbed fitting · Barbed fittings
CRCN-1/4-PK-4	Barbed fitting · Stainless-steel fittings
CRCN-1/4-PK-6	Barbed fitting · Stainless-steel fittings
QS-1/4-8-50	Push-in fitting · Push-in fittings
QS-1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
CRQS-1/4-8-I	Push-in fitting · Stainless-steel fittings
CRQS-1/4-10-I	Push-in fitting · Stainless-steel fittings
QS-1/4-10-I-50	Push-in fitting · Push-in fittings
QS-1/4-8-I-50	Push-in fitting · Push-in fittings
QS-1/4-8	Push-in fitting · Push-in fittings
QS-1/4-10	Push-in fitting · Push-in fittings
QS-1/4-8-I	Push-in fitting · Push-in fittings
QS-1/4-10-I	Push-in fitting · Push-in fittings
QS-V0-1/4-8	Push-in fitting · Push-in fittings
QS-V0-1/4-10	Push-in fitting · Push-in fittings
CRQS-1/4-8	Push-in fitting · Stainless-steel fittings
CRQS-1/4-10	Push-in fitting · Stainless-steel fittings
UC-1/4	Silencer · Silencer
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QS-V0-G1/4-8	Push-in fitting · Push-in fittings
QS-V0-G1/4-10	Push-in fitting · Push-in fittings
UC-1/4-20	Silencer · Silencer
U-1/4-20	Silencer · Silencer
AMTE-M-LH-G14	Silencer · Silencer
AMTE-M-H-G14	Silencer · Silencer
