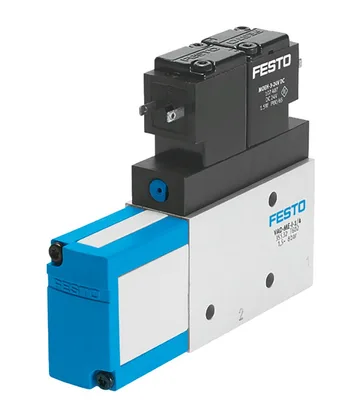

Festo VAD-ME-I-3/8

Vacuum generator. Compact and sturdy design. Built-in solenoid valve (on/off). Available with ejector pulse

FestoMFR # VAD-ME-I-3/8SKU # CEY-937FC7826473

Nominal size, Laval nozzle2

Mounting positionAny

Ejector characteristicHigh vacuum

DesignT-shape

Symbol00991493

Operating pressure1.5, 8

Have questions?Chat on WhatsApp

About This Product

Vacuum generator. Compact and sturdy design. Built-in solenoid valve (on/off). Available with ejector pulse

Festo VAD-ME-I-3/8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle2

Mounting positionAny

Ejector characteristicHigh vacuum

Integrated functionEjector pulse valve, electric, On/off valve, electric

DesignT-shape

Symbol00991493

Operating pressure1.5, 8

Max. vacuum90

Duty cycle100%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature0, 50

Degree of protectionIP65

Ambient temperature0, 50

Electrical connectionPlug

Type of mountingWith female thread

Pneumatic connection, port 1G1/4

Vacuum connectionG3/8

Material housingAluminium

Accessories 51

Genuine accessories that can be used with the Festo VAD-ME-I-3/8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-12X2-NT	Plastic tubing · Tubes
MSSD-E	Plug socket · Electrical accessories
ME-LD-12-24DC	Illuminating seal · Electrical accessories
PUN-H-12X2-SW	Plastic tubing · Tubes
KME-1-24-2.5-LED	Plug socket with cable · Electrical accessories
PUN-H-12X2-TBL	Plastic tubing · Tubes
PUN-H-12X2-BL	Plastic tubing · Tubes
QS-G3/8-12-I	Push-in fitting · Fittings
QS-G3/8-12	Push-in fitting · Fittings
QSL-G3/8-12	Push-in L-fitting · Fittings
CK-1/4-PK-4	Quick connector · Quick connectors
CK-1/4-PK-6	Quick connector · Quick connectors
CK-1/4-PK-9	Quick connector · Quick connectors
CK-1/4-PK-4-KU	Quick connector · Quick connectors
CK-1/4-PK-6-KU	Quick connector · Quick connectors
CK-1/4-PK-9-KU	Quick connector · Quick connectors
CN-1/4-PK-4	Barbed fitting · Barbed fittings
CN-1/4-PK-6	Barbed fitting · Barbed fittings
CRCN-1/4-PK-4	Barbed fitting · Stainless-steel fittings
CRCN-1/4-PK-6	Barbed fitting · Stainless-steel fittings
VAF-PK-4	Vacuum filter · General accessories
KME-1-24-5-LED	Plug socket with cable · Electrical accessories
QS-1/4-8-50	Push-in fitting · Push-in fittings
QS-1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
CRQS-1/4-8-I	Push-in fitting · Stainless-steel fittings
CRQS-1/4-10-I	Push-in fitting · Stainless-steel fittings
QS-1/4-10-I-50	Push-in fitting · Push-in fittings
QS-1/4-8-I-50	Push-in fitting · Push-in fittings
QS-1/4-8	Push-in fitting · Push-in fittings
QS-1/4-10	Push-in fitting · Push-in fittings
QS-1/4-8-I	Push-in fitting · Push-in fittings
QS-1/4-10-I	Push-in fitting · Push-in fittings
VAF-PK-6	Vacuum filter · General accessories
QS-V0-1/4-8	Push-in fitting · Push-in fittings
QS-V0-1/4-10	Push-in fitting · Push-in fittings
CRQS-1/4-8	Push-in fitting · Stainless-steel fittings
CRQS-1/4-10	Push-in fitting · Stainless-steel fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QS-G1/4-10-I	Push-in fitting · Push-in fittings
QS-V0-G1/4-8	Push-in fitting · Push-in fittings
QS-V0-G1/4-10	Push-in fitting · Push-in fittings
KME-1-24-10-LED	Plug socket with cable · Electrical accessories
VAF-PK-3	Vacuum filter · General accessories
MSSD-E-M12	Plug socket · Electrical accessories
VAF-DB-1/4	Vacuum filter · General accessories
VAF-DB-3/8	Vacuum filter · General accessories
VAF-DB-1/2	Vacuum filter · General accessories
