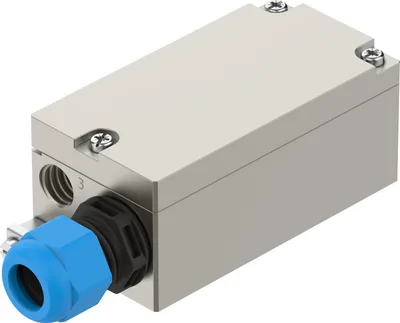

Festo VACC-P2-0.4-K4-1-EX4A

Pilot control

FestoMFR # VACC-P2-0.4-K4-1-EX4ASKU # YLSBNBKRI2WY8ZH

Type of actuationElectrical

Mounting positionAny

Conforms to standardISO 15218

Symbol00997593

Operating pressure0.2, 0.8

Operating pressure2, 8

Have questions?Chat on WhatsApp

About This Product

Festo VACC-P2-0.4-K4-1-EX4A (Pilot control) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VACC-P2-0.4-K4-1-EX4A — price, stock availability and technical specifications.

Festo VACC-P2-0.4-K4-1-EX4A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Type of actuationElectrical

Mounting positionAny

Conforms to standardISO 15218

Symbol00997593

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Air consumption at nominal operating pressure0.35

Switching time off40

Switching time on40

Duty cycle100%

Required current consumption0.003

Max. input power Pi2.1 W

Max. input voltage Ui30 V

Max. input current Ii0.33 A

Nominal operating voltage DC24

Max. intrinsically safe circuit input parameterSee IECEx certificate

Characteristic coil data14 - 30 V DC: 0.04 - 0.19 W

Effective internal capacitance Ci1 nF

Effective internal inductivity LiNegligibly low

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions

Explosion protection certification outside the EUEPL Gb (IECEx)

Explosion protectionZone 1 (ATEX), Zone 1 (IEC-EX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (IEC-EX), Zone 22 (ATEX)

Certificate issuing authorityBVS 25 ATEX E 063, IECEx BVS 25.0061

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx ia IIC/IIB T6/T4 Gb

Explosion ignition protection type for dustEx ia IIIC T85°C/135°C Db

Explosion ambient temperatureT4: -25°C <= Ta <= +60°C, T6: -25°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:2:4]

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-40, 80

Degree of protectionIP65, To IEC 60529

Note on degree of protectionSee user documentation

Ambient temperature-25, 60

Max. tightening torque for fitting3

Product weight440

Electrical connectionSpring-loaded terminal, Terminal box, cable entry thread M20x1.5

Cable diameter4, 13

Nominal cross section conductor0.25, 2.5

Type of mountingCNOMO

Note on materialsRoHS compliant

Material sealsEPDM, FVMQ, VMQ

Material housingEmatal coated aluminium

Material screwsHigh-alloy stainless steel

Material windingCopper
