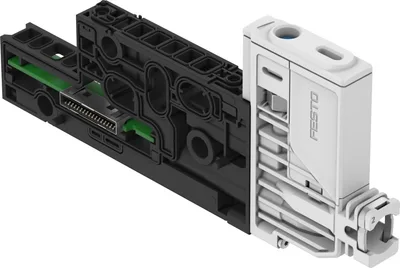

Festo VABX-A-S-VE-BH-VB010L

Manifold sub-base for vacuum

FestoMFR # VABX-A-S-VE-BH-VB010LSKU # YLS95QDSN2SLMZ

Width12.55

Length150.8

Nominal size, Laval nozzle0.95

Grid dimension12.55

Valve size10

Silencer designOpen

Have questions?Chat on WhatsApp

About This Product

Festo VABX-A-S-VE-BH-VB010L (Manifold sub-base for vacuum) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABX-A-S-VE-BH-VB010L — price, stock availability and technical specifications.

Festo VABX-A-S-VE-BH-VB010L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Width12.55

Length150.8

Nominal size, Laval nozzle0.95

Grid dimension12.55

Valve size10

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Silencer designOpen

Type of actuationElectrical

Reverse polarity protectionYes

Sealing principleSoft

Mounting positionAny

Ejector characteristicHigh suction rate

Adjustment componentSlotted head screw

Diagnostics per internal communicationSwitch-off load supply, Electronics/sensors overvoltage, Electronics/sensors undervoltage

Measured variableRelative pressure

Measuring principlePiezoresistive

Max. number of valve positions1

Integrated functionEjector pulse, electrical, Ejector pulse valve, electric, Flow control, Pressure sensor, Pressure transmitter, On/off valve, electric, Air-saving function, electric, Check valve, Open silencer, With e

Type of pilotingPiloted

Pilot air supplyInternal

Symbol00997563, 00997711

Valve function2x3/2 closed monostable, 5/4-way valve with holding function, for vacuum generator

Compatible withValve terminal VTUX-A-S

Display typeLED

Signal status displayYes

Operating pressure for max. suction flow rate0.6

Operating pressure for max. suction flow rate6

Operating pressure for max. suction flow rate87

Operating pressure0.2, 0.7

Operating pressure2, 7

Nominal operating pressure0.6

Nominal operating pressure6

Nominal operating pressure87

Pilot pressure0.2, 0.7

Pilot pressure2, 7

Max. suction flow rate against atmosphere45

Air supply time at nominal operating pressure0.42

Dimensions (W x L x H)12.55 mm x 150.8 mm x 68.8 mm

Inductive protective circuitIntegrated

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypical 27 mA

Intrinsic current consumption at nominal operating voltage loadTypical 2.5 mA

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Power consumption at 24VDC0.65

Nominal DC operating voltage, electronics/sensors24

Nominal operating voltage DC of load24

Power failure bridging10

Electrical isolation of outputs between channel - internal communicationYes

Potential separation between the supply voltages electronics/sensor technology aYes

Permissible voltage fluctuations for electronics/sensors±10%

Permissible voltage fluctuation of load±10%

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Storage temperature-20, 70

Relative air humidity5 - 95%

Degree of protectionIP65

Note on degree of protectionIn mounted state

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:-]

Ambient temperature-5, 50

Nominal altitude of use<= 2000 m NHN

Max. installation height2000

Product weight68

Pressure measuring range-0.1, 0.1

Pressure measuring range-1, 1

Pressure measuring range-14.5, 14.5

Accuracy in ± % FS3

Reproducibility of switching values FS1

Electrical controlAP interface

Communication interface, protocolAP-COM

Type of mountingTie rod

Pneumatic connection, port 2QS-4, QS-6, QS-8, QS-5/32, QS-1/8, QS-1/4, QS-5/16, For tubing outside diameter of 4 mm, For tubing outside diameter of 6 mm, For tubing outside diameter of 8 mm, For tubing outside diameter of 5/32",

Note on materialsRoHS compliant

Material sub-baseReinforced PA

Material coverReinforced PA

Material sealsHNBR, NBR

Material receiver nozzlePOM

Material foilPolyester

Material housingReinforced PA

Material sleeveReinforced PA

Material clipHigh-alloy stainless steel

Material nutHigh-alloy stainless steel

Material o-ringHNBR, NBR

Material adjusting screwReinforced PA
