How can I get a price quote for Festo VABX-A-S-BV-AH-RVAAAA?

You can request a fast quote for Festo VABX-A-S-BV-AH-RVAAAA from Yılsa Engineering. Reference part number YLSBIWJGNTPZOW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABX-A-S-BV-AH-RVAAAA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABX-A-S-BV-AH-RVAAAA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABX-A-S-BV-AH-RVAAAA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

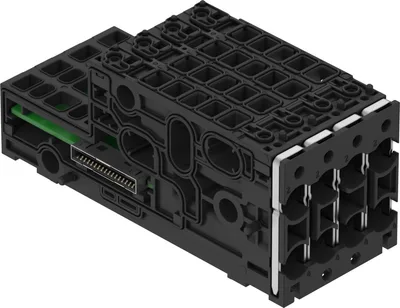

Festo VABX-A-S-BV-AH-RVAAAA

Manifold sub-base

FestoMFR # VABX-A-S-BV-AH-RVAAAASKU # YLSBIWJGNTPZOW

Size1

Grid dimension10.55

Reverse polarity protectionYes

Max. number of valve positions4

Integrated functionWith electrical interlinking module

Flow directionReversible

Have questions?Chat on WhatsApp

About This Product

Festo VABX-A-S-BV-AH-RVAAAA (Manifold sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABX-A-S-BV-AH-RVAAAA — price, stock availability and technical specifications.

Festo VABX-A-S-BV-AH-RVAAAA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size1

Grid dimension10.55

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Reverse polarity protectionYes

Diagnostics via LEDDiagnostics per channel, Diagnostics per module

Diagnostics per internal communicationSwitch-off load supply, Load supply undervoltage PL, Logic supply undervoltage PS, Load supply overvoltage PL, Logic supply overvoltage PS

Max. number of valve positions4

Integrated functionWith electrical interlinking module

Flow directionReversible

Max. number of valve coils8

Compatible withValve terminal VTUX-A-S

Suitability for vacuumYes

Nominal flow rate standardised according to ISO 8778470

Dimensions (W x L x H)42.05 mm x 104.3 mm x 43.1 mm

Fuse protection (short circuit)Internal electronic fuse per channel

Inductive protective circuitIntegrated

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypical 24 mA

Intrinsic current consumption at nominal operating voltage loadTypical 7 mA
