How can I get a price quote for FESTO VABS-S4-1S-N14-B-K2?

You can request a fast quote for FESTO VABS-S4-1S-N14-B-K2 from Yılsa Engineering. Reference part number CEY-937FC781F753. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VABS-S4-1S-N14-B-K2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VABS-S4-1S-N14-B-K2 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VABS-S4-1S-N14-B-K2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

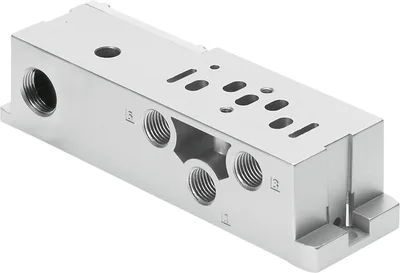

FESTO VABS-S4-1S-N14-B-K2

Sub-base

FESTOMFR # VABS-S4-1S-N14-B-K2SKU # CEY-937FC781F753

Construction width26

Based on standardISO 15407-2

Mounting positionAny

Pilot air supplyInternal

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Have questions?Chat on WhatsApp

About This Product

FESTO VABS-S4-1S-N14-B-K2 (Sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VABS-S4-1S-N14-B-K2 — price, stock availability and technical specifications.

FESTO VABS-S4-1S-N14-B-K2

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Construction width26

Based on standardISO 15407-2

Mounting positionAny

Pilot air supplyInternal

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Operational voltage range DC24

Immunity to surge4

Current rating at 40° C2

Pollution degree3

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX), To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Explosion protection certification outside the EUEPL Gc (GB)

Explosion protectionZone 2 (ATEX), Zone 2 (UKEX)

ATEX category gasII 3G

Explosion ignition protection type for gasEx ec IIC T3 Gc X

explosion group assemblyIIC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Max. surface temperature assemblyT3

Degree of protectionIP65, NEMA 4, In mounted state

Ambient temperature-5, 50

Product weight302

Type of mountingWith through-hole, To ISO 15407-2

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Accessories 9

Genuine accessories that can be used with the FESTO VABS-S4-1S-N14-B-K2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QB-1/4-3/16-U	Push-in fitting · Push-in fittings
QB-1/4-1/4-U	Push-in fitting · Push-in fittings
QB-1/4-5/16-U	Push-in fitting · Push-in fittings
QB-1/4-3/8-U	Push-in fitting · Push-in fittings
QB-1/4-1/2-U	Push-in fitting · Push-in fittings
QB-1/4-5/32-U	Push-in fitting · Push-in fittings
QB-1/4-1/4-I-U	Push-in fitting · Push-in fittings
QB-1/4-5/16-I-U	Push-in fitting · Push-in fittings
QB-1/4-3/8-I-U	Push-in fitting · Push-in fittings
