How can I get a price quote for Festo VABP-S1-2V1G-G38-2M-A1?

You can request a fast quote for Festo VABP-S1-2V1G-G38-2M-A1 from Yılsa Engineering. Reference part number YLSU4UCJPKYRGPY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABP-S1-2V1G-G38-2M-A1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABP-S1-2V1G-G38-2M-A1 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABP-S1-2V1G-G38-2M-A1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

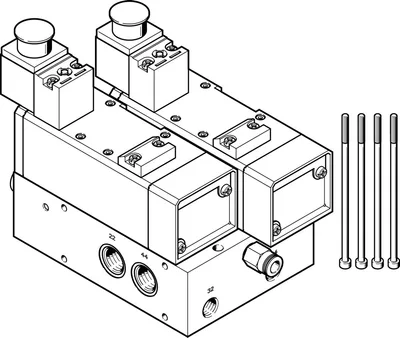

Festo VABP-S1-2V1G-G38-2M-A1

Sub-base

FestoMFR # VABP-S1-2V1G-G38-2M-A1SKU # YLSU4UCJPKYRGPY

Construction width54

Function port 32G1/4

Function port 34G1/4

Pneumatic port 22Sub-base, G3/8

Pneumatic port 44Sub-base, G3/8

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo VABP-S1-2V1G-G38-2M-A1 (Sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABP-S1-2V1G-G38-2M-A1 — price, stock availability and technical specifications.

Festo VABP-S1-2V1G-G38-2M-A1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Construction width54

Function port 32G1/4

Function port 34G1/4

Pneumatic port 22Sub-base, G3/8

Pneumatic port 44Sub-base, G3/8

Mounting positionAny

Operating pressure0, 16

Pilot pressure3, 8

Standard nominal flow rate (standardised to DIN 1343)2000

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Ambient temperature0, 50

Product weight3400

Pilot air port 14G1/8

Pneumatic connection, port 2G3/8

Pneumatic connection, port 4G3/8

Note on materialsRoHS compliant

Material manifold railWrought aluminium alloy

Material o-ringNBR

Material screwsSteel

Accessories 6

Genuine accessories that can be used with the Festo VABP-S1-2V1G-G38-2M-A1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B-1/4	Blanking plug · Other connectors
KMC-1-24DC-2,5-LED	Connecting cable · Connecting cables
KMC-1-24DC-5-LED	Connecting cable · Connecting cables
QS-G1/8-8	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G3/8-12	Push-in fitting · Push-in fittings
