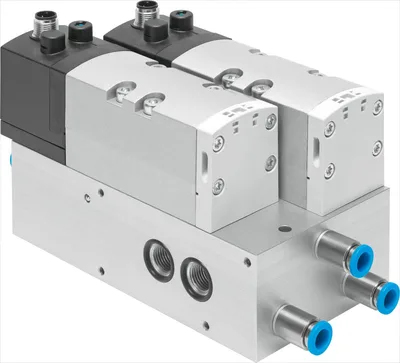

Festo VABP-S1-1V1G-G14-2M-R3

Sub-base

FestoMFR # VABP-S1-1V1G-G14-2M-R3SKU # YLSSN4OCJBD348

Construction width42

Function port 32G1/8

Function port 34G1/8

Pneumatic port 22Sub-base, G1/4

Pneumatic port 44Sub-base, G1/4

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo VABP-S1-1V1G-G14-2M-R3 (Sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABP-S1-1V1G-G14-2M-R3 — price, stock availability and technical specifications.

Festo VABP-S1-1V1G-G14-2M-R3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Construction width42

Function port 32G1/8

Function port 34G1/8

Pneumatic port 22Sub-base, G1/4

Pneumatic port 44Sub-base, G1/4

Mounting positionAny

Operating pressure0, 16

Pilot pressure3, 8

Standard nominal flow rate (standardised to DIN 1343)1400

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Ambient temperature0, 50

Product weight2480

Pilot air port 14G1/8

Pneumatic connection, port 2G1/4

Pneumatic connection, port 4G1/4

Note on materialsRoHS compliant

Material manifold railWrought aluminium alloy

Material o-ringNBR

Material screwsSteel

Accessories 4

Genuine accessories that can be used with the Festo VABP-S1-1V1G-G14-2M-R3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
B-1/8	Blanking plug · Other connectors
QS-G1/8-6	Push-in fitting · Push-in fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
