How can I get a price quote for FESTO VABF-S6-1-P5A4-N12-4-1?

You can request a fast quote for FESTO VABF-S6-1-P5A4-N12-4-1 from Yılsa Engineering. Reference part number CEY-937FC781D7E9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VABF-S6-1-P5A4-N12-4-1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VABF-S6-1-P5A4-N12-4-1 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VABF-S6-1-P5A4-N12-4-1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

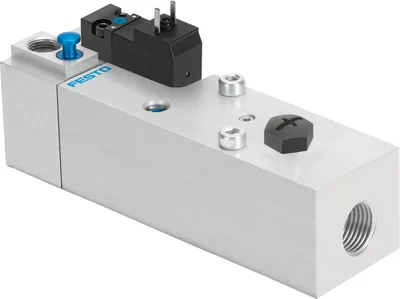

FESTO VABF-S6-1-P5A4-N12-4-1

Soft-start valve

FESTOMFR # VABF-S6-1-P5A4-N12-4-1SKU # CEY-937FC781D7E9

Max. positive test pulse with 0 signal2500

Max. negative test pulse with 1 signal1400

Based on standardISO 5599-2

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

FESTO VABF-S6-1-P5A4-N12-4-1 (Soft-start valve) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VABF-S6-1-P5A4-N12-4-1 — price, stock availability and technical specifications.

FESTO VABF-S6-1-P5A4-N12-4-1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Max. positive test pulse with 0 signal2500

Max. negative test pulse with 1 signal1400

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Based on standardISO 5599-2

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Self-resetting via electrical control signal

DesignPiston gate valve

Type of resetMechanical spring

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00995781

Valve functionSoft-start function

Note on forced dynamizationSwitching frequency min. 1/month

Operating pressure0.2, 1.2

Operating pressure2, 12

Switchover pressure presetting4

Standard nominal flow rate ventilation3000

Standard nominal flow rate for exhaust3300

Nominal operating voltage DC24

Characteristic coil data24 V DC: 2.5 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Degree of protectionIP65, NEMA 4

Ambient temperature-5, 50

Product weight590

Electrical connectionType C, Plug, To EN 175301-803, Square design

Type of mountingOn sub-base

Pilot air port 12/14Sub-base size 1 to ISO 5599-2

Pneumatic connection, port 1Sub-base size 1 to ISO 5599-2

Pneumatic connection, port 2Sub-base size 1 to ISO 5599-2

Pneumatic connection, port 3G1/2

Pneumatic connection, port 4Sub-base size 1 to ISO 5599-2

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Material screwsSteel, Galvanised

Accessories 31

Genuine accessories that can be used with the FESTO VABF-S6-1-P5A4-N12-4-1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSYL-1/2-1/2-U	Push-in T-fitting · Push-in fittings
QSYLV-1/2-1/2-U	Push-in T-fitting · Push-in fittings
QSR-1/2-1/2-U	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-1/2-U	Push-in L-fitting · Push-in fittings
QS-1/2-5/8-U	Push-in fitting · Push-in fittings
QSK-1/2-1/2-U	Push-in fitting, self-sealing · Push-in fittings
QSL-1/2-5/8-U	Push-in L-fitting · Push-in fittings
QSLV-1/2-5/8-U	Push-in L-fitting · Push-in fittings
QSLV-1/2-1/2-I-U	Push-in L-fitting · Push-in fittings
QSLV2-1/2-1/2-U	Multiple distributor · Push-in fittings
QSLV3-1/2-1/2-U	Multiple distributor · Push-in fittings
QSLV4-1/2-1/2-U	Multiple distributor · Push-in fittings
QSLV6-1/2-1/2-U	Multiple distributor · Push-in fittings
QB-1/2-3/8-U	Push-in fitting · Push-in fittings
QB-1/2-1/2-U	Push-in fitting · Push-in fittings
QBL-1/2-3/8-U	Push-in L-fitting · Push-in fittings
QBL-1/2-1/2-U	Push-in L-fitting · Push-in fittings
QBT-1/2-3/8-U	Push-in T-fitting · Push-in fittings
QBT-1/2-1/2-U	Push-in T-fitting · Push-in fittings
QBLL-1/2-3/8-U	Push-in L-fitting, long · Push-in fittings
QBLL-1/2-1/2-U	Push-in L-fitting, long · Push-in fittings
QBY-1/2-5/16-U	Push-in Y-fitting · Push-in fittings
QBY-1/2-3/8-U	Push-in Y-fitting · Push-in fittings
QBY-1/2-1/2-U	Push-in Y-fitting · Push-in fittings
QBTL-1/2-3/8-U	Push-in T-fitting · Push-in fittings
QBTL-1/2-1/2-U	Push-in T-fitting · Push-in fittings
QBLV-1/2-5/16-U	Push-in L-fitting · Push-in fittings
QBLV-1/2-3/8-U	Push-in L-fitting · Push-in fittings
QBLV-1/2-1/2-U	Push-in L-fitting · Push-in fittings
QB-1/2-5/16-U	Push-in fitting · Push-in fittings
QB-1/2-1/2-I-U	Push-in fitting · Push-in fittings
