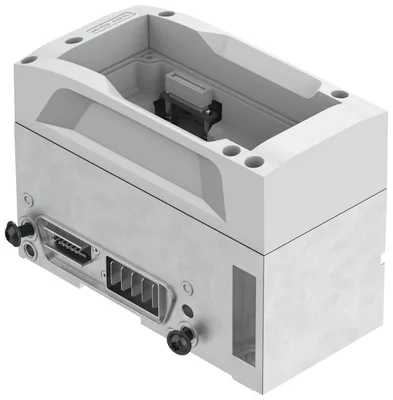

Festo VABA-S6-1-X5

Pneumatic interface

FestoMFR # VABA-S6-1-X5SKU # YLSVKB6NUPQQBPO

Note on vibration resistanceSG2 on wall mounting

Note on shock resistanceSG2 on wall mounting

Valve terminal interfaceType 44, VTSA, Type 45, VTSA-F

Reverse polarity protectionYes

Max. number of valve coils32

Module code (hex/dec)0x3044/12356d

Have questions?Chat on WhatsApp

About This Product

Festo VABA-S6-1-X5 (Pneumatic interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABA-S6-1-X5 — price, stock availability and technical specifications.

Festo VABA-S6-1-X5

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG2 on wall mounting

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistanceSG2 on wall mounting

Valve terminal interfaceType 44, VTSA, Type 45, VTSA-F

Reverse polarity protectionYes

Diagnostics via LEDDiagnostics per module, Load power supply

Diagnostics per internal communicationCommunication error, Short-circuit/overload in output signal, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Max. number of valve positions16 with double solenoid valves, 32 with single solenoid valves

Max. number of valve coils32

Module code (hex/dec)0x3044/12356d

Module parametersActivation of diagnostics in case of overload/short circuit, Condition counter limit value/actual value, Configuration of voltage monitoring load supply PL, Behaviour in error state

Internal cycle time< 1 ms

Dimensions (W x L x H)70.5 mm x 142 mm x 102.6 mm

Fuse protection (short circuit)Internal electronic fuse protection per valve output

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypical 27 mA

Intrinsic current consumption at nominal operating voltage loadTypical 17 mA

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal DC operating voltage, electronics/sensors24

Nominal operating voltage DC of load24

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Pollution degree2

Permissible voltage fluctuations for electronics/sensors±25%
