How can I get a price quote for Festo VABA-S6-1-X2-F2-CB2-AL?

You can request a fast quote for Festo VABA-S6-1-X2-F2-CB2-AL from Yılsa Engineering. Reference part number YLSZP3VTA9IAE1W. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABA-S6-1-X2-F2-CB2-AL in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABA-S6-1-X2-F2-CB2-AL genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABA-S6-1-X2-F2-CB2-AL?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

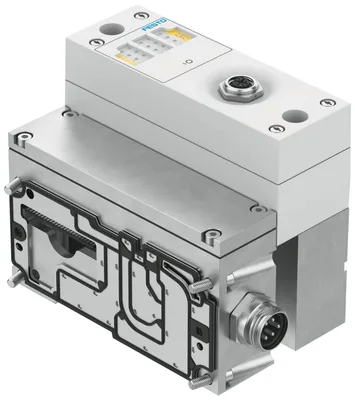

Festo VABA-S6-1-X2-F2-CB2-AL

Pneumatic interface

FestoMFR # VABA-S6-1-X2-F2-CB2-ALSKU # YLSZP3VTA9IAE1W

Valve terminal interfaceType 44, VTSA-F-CB

LED display1 Group diagnostics

Operational voltage range DC21.6, 26.4

Max. power supply per channel0.2 A

Max. total current per module2

Nominal operating voltage DC24

Have questions?Chat on WhatsApp

About This Product

Festo VABA-S6-1-X2-F2-CB2-AL (Pneumatic interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABA-S6-1-X2-F2-CB2-AL — price, stock availability and technical specifications.

Festo VABA-S6-1-X2-F2-CB2-AL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Valve terminal interfaceType 44, VTSA-F-CB

DiagnosisWire break per valve coil, Short circuit of valves, Undervoltage of valves

Max. number of valve positions12 with double solenoid valves, 24 with single solenoid valves

LED display1 Group diagnostics

ParameterisationFail-safe per channel, Forcing per channel, Idle mode per channel, Module monitoring

Fuse protection (short circuit)Internal electronic fuse protection per valve output

Operational voltage range DC21.6, 26.4

Intern power consumption nominal operating voltageTyp. 15 mA for valves without CPX-FVDA-P2, Typ. 25 mA for electronics with CPX-FVDA-P2

Max. power supply per channel0.2 A

Max. total current per module2

Nominal operating voltage DC24

Isolation channel - internal busYes, when using an additional power supply for the valves

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Degree of protectionIP65

Ambient temperature-5, 50

Product weight1596

Electrical controlFieldbus

Electrical connection output, functionSafe digital output

Electrical connection output, connection typeSocket

Electrical connection output, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection output, number of connections/cores5

Electrical connection valve, functionPower supply, valve

Electrical connection for valve, connection typePlug

Electrical connection for valve, connection technology7/8'' round plug connector

Electrical connection for valve, number of pins/wires5

Electrical connectionVia CPX

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Material coverPA

Material sealsNBR

Material screwsSteel
