How can I get a price quote for Festo V/O-3-PK-3?

You can request a fast quote for Festo V/O-3-PK-3 from Yılsa Engineering. Reference part number CEY-937FC7826DC3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo V/O-3-PK-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo V/O-3-PK-3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo V/O-3-PK-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

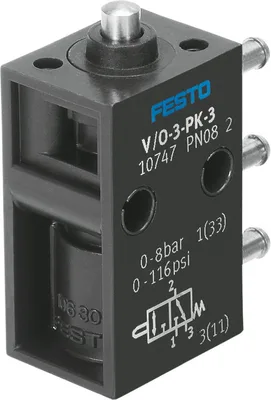

Festo V/O-3-PK-3

Stem actuated valve. Through-holes in housing. Polymer or aluminium design

FestoMFR # V/O-3-PK-3SKU # CEY-937FC7826DC3

Valve function3/2-way, monostable, open/closed

Type of actuationMechanical

pneumatic working portPK-3

Operating pressure0, 8

DesignPiston seat

Nominal size2.5

Have questions?Chat on WhatsApp

About This Product

Stem actuated valve. Through-holes in housing. Polymer or aluminium design

Festo V/O-3-PK-3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, monostable, open/closed

Type of actuationMechanical

Standard nominal flow rate (standardised to DIN 1343)80

pneumatic working portPK-3

Operating pressure0, 8

DesignPiston seat

Nominal size2.5

Type of pilotingDirect

Symbol00991294

Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Actuating force17

Actuating force, normally closed17

Actuating force, normally open24

Product weight20

Type of mountingWith through-hole

Pneumatic connection, port 1PK-3

Pneumatic connection, port 2PK-3

Pneumatic connection, port 3PK-3

Material sealsNBR

Material housingPOM

Accessories 1

Genuine accessories that can be used with the Festo V/O-3-PK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
