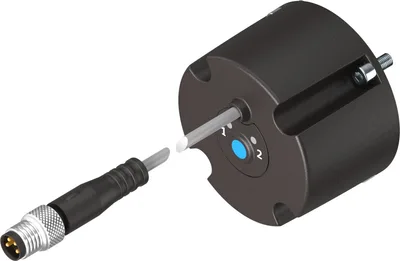

Festo SRBS-Q1-10-E270-EP-1-S-M8

Position sensor. Used to detect rotation of the shaft on rotary drives DRVS and DSM. Simple and reliable operation using just one pushbutton directly on the device. Switching output 2x PNP or 2x NPN, switchable. Sensor can be quickly mounted without having to manually search for switching points

FestoMFR # SRBS-Q1-10-E270-EP-1-S-M8SKU # YLSHNATFLARLFVG

DesignRound

Based on standardEN 60947-5-2

Symbol00995400

ApprovalRCM, c UL us - Listed (Oil)

Special characteristicsOil-resistant

Note on materialsRoHS compliant, Free of halogen

Have questions?Chat on WhatsApp

About This Product

Festo SRBS-Q1-10-E270-EP-1-S-M8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Based on standardEN 60947-5-2

Symbol00995400

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Special characteristicsOil-resistant

Note on materialsRoHS compliant, Free of halogen

Measured variableRotation angle

Measuring principleMagnetic Hall

Sensing range270

Ambient temperature-20, 70

Typical sampling interval3

Switching output2 x PNP or 2 x NPN, switchable

Switching element functionNC or NO, switchable

Repetition accuracy of switching point<= 1°

Switch-on time4

Switch-off time4

Max. switching frequency125

Max. output current50

Max. switching capacity DC1.5

Voltage drop1

Off-state current0.05

Short circuit current ratingYes

Overload protectionYes

Rated operational voltage DC24

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current20

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingRotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00991171

Connection outlet orientationIn-line

Material electrical contactGold-plated copper alloy

Test conditions cableBending strength: to Festo standard, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Cable length0.3

Cable characteristicSuitable for energy chains/robot applications

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Cable diameter2.9

Type of mountingScrew-clamped

Mounting positionAny

Product weight35

Housing colourBlack

Material housingPolyester

Material foilPolyester

Switching status indicationYellow LED

Setting optionsKey

Storage temperature-30, 70

Ambient temperature with moving cable-20, 70

Degree of protectionIP65, IP68

Protection classIII

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 3 in accordance with FN 942017-4 and EN 60068-2-6

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper, zinc or nickel are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug con

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Accessories 3

Genuine accessories that can be used with the Festo SRBS-Q1-10-E270-EP-1-S-M8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-2.5-N-M8G4	Connecting cable · Connecting cables
