How can I get a price quote for Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12?

You can request a fast quote for Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12 from Yılsa Engineering. Reference part number YLSXITPDB9CCRWQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

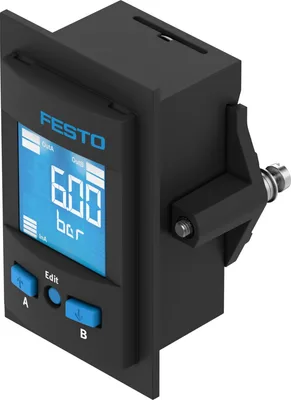

Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12

Pressure sensor. For monitoring compressed air and non-corrosive gases. With or without display. Transfer of the pressure value as switching signal, analogue signal or via IO-Link® to the connected control system. Maximum versatility thanks to a wide range of pneumatic adaptations and switchable electrical outputs. Sustainable operation thanks to pressure monitoring

FestoMFR # SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12SKU # YLSXITPDB9CCRWQ

Symbol00995410

ApprovalRCM, c UL us - Listed (Oil)

KC markKC-EMV

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Have questions?Chat on WhatsApp

About This Product

Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00995410

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Start value for pressure measuring range0

End value for pressure measuring range1

End value for pressure measuring range10

End value for pressure measuring range145

Overload pressure1.5

Overload pressure15

Overload pressure217.5

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible

Media temperature0, 50

Ambient temperature0, 50

Resolution ADC12

Accuracy in ± % FS1.5

Repetition accuracy in ± %FS0.3

Temperature coefficient in ± %FS/K0.05

Switching output2 x PNP or 2 x NPN, switchable

Switching functionFreely programmable

Switching element functionNC or NO, switchable

Max. output current100

Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V

Rise time3

Max. load resistance current output500

Min. load resistance voltage output10

Short circuit current ratingYes

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT0 bytes

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring)

IO-Link, Min. cycle time3 ms

IO-Link, Data storage required500

Operational voltage range DC20, 30

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00995386

Type of mountingFront panel mounting

Mounting positionAny

Pneumatic connectionQS-6

Product weight60

Material in contact with the mediumFluoro rubber, Brass, nickel-plated, NBR, Reinforced PA

Display typeIlluminated LCD

Displayable unitsMPa, bar, inH2O, inHg, kPa, kgf/cm², mmHg, psi

Setting optionsIO-Link®, Teach-in, Via display and buttons

Protection against tamperingIO-Link®, PIN code

Setting range threshold value0, 100

Setting range hysteresis0, 90

Degree of protectionIP65, IP67

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Accessories 63

Genuine accessories that can be used with the Festo SPAU-P10R-F-Q6-L-PNLK-PNVBA-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-6X1-TBL	Plastic tubing · Tubes
SACC-PU-G	Protective hood · Mounting accessories
PUN-6X1-BL	Plastic tubing · Tubes
PUN-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
NEBA-M12G5-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE4	Connecting cable · Connecting cables
GASA-EI-CTR-12M-1	AX Industrial App · Digital services
GASA-EI-CTR-12M-10	AX Industrial App · Digital services
GASA-EI-CTR-12M-20	AX Industrial App · Digital services
GASA-EI-CTR-12M-100	AX Industrial App · Digital services
GASA-EI-CTR-12M-1000	AX Industrial App · Digital services
PUN-6X1-SI	Plastic tubing · Tubing
PAN-6X1-SI	Plastic tubing · Tubing
PUN-6X1-DUO-SI	DUO tubing · Tubing
PUN-6X1-DUO-BS	DUO tubing · Tubing
PUN-6X1-RT	Plastic tubing · Tubing
PUN-6X1-GE	Plastic tubing · Tubing
PUN-6X1-GN	Plastic tubing · Tubing
PLN-6X1-NT	Plastic tubing · Tubing
PLN-6X1-SW	Plastic tubing · Tubing
PUN-6X1-S-1-BL	Spiral plastic tubing · Tubing
PUN-6X1-S-2-BL	Spiral plastic tubing · Tubing
PUN-6X1-S-6-BL	Spiral plastic tubing · Tubing
PUN-6X1-S-1-SW	Spiral plastic tubing · Tubing
PUN-6X1-S-2-SW	Spiral plastic tubing · Tubing
PUN-6X1-S-6-SW	Spiral plastic tubing · Tubing
PUN-6X1-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-6X1-S-2-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-6X1-S-6-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-6X1-SI-500	Plastic tubing · Tubing
PUN-6X1-BL-500	Plastic tubing · Tubing
PEN-6X1-SW	Plastic tubing · Tubing
PEN-6X1-NT	Plastic tubing · Tubing
PAN-6X1-NT	Plastic tubing · Tubing
PEN-6X1-SW-500	Plastic tubing · Tubing
PEN-6X1-BL-500	Plastic tubing · Tubing
PEN-6X1-SI-500	Plastic tubing · Tubing
PEN-6X1-BL	Plastic tubing · Tubing
PEN-6X1-SI	Plastic tubing · Tubing
PEN-6X1-GN	Plastic tubing · Tubing
PEN-6X1-RT	Plastic tubing · Tubing
PEN-6X1-GE	Plastic tubing · Tubing
PAN-6X1-SI-500	Plastic tubing · Tubing
PAN-6X1-BL-500	Plastic tubing · Tubing
PAN-6X1-SW-500	Plastic tubing · Tubing
PAN-6X1-BL	Plastic tubing · Tubing
PAN-6X1-SW	Plastic tubing · Tubing
PAN-6X1-GN	Plastic tubing · Tubing
PAN-6X1-RT	Plastic tubing · Tubing
PAN-6X1-GE	Plastic tubing · Tubing
PUN-6X1-SW-500	Plastic tubing · Tubing
PLN-6X1-BL	Plastic tubing · Tubing
PLN-6X1-SI	Plastic tubing · Tubing
PLN-6X1-RT	Plastic tubing · Tubing
SAMH-PU-A	Mounting bracket · Mounting accessories
PTFEN-6X1-NT-100	Plastic tubing · Tubing
PTFEN-6X1-NT-500	Plastic tubing · Tubing
NEBA-M12W5-U-10-N-LE4	Connecting cable · Connecting cables
