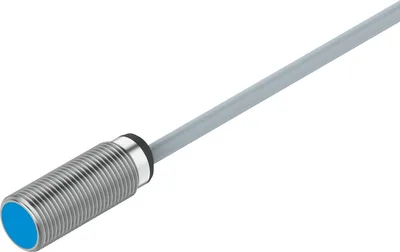

Festo SOIA-M12PB-PNLK-LE

Proximity switch. Inductive distance, speed and acceleration sensor. Sensor for monitoring pneumatic, hydraulic and elastic cushioning. IO-Link® 1.1 Smart sensor profile. Sizes: M8, M12, M18, M30, Q40. Enables predictive maintenance and prevents expensive production downtime

FestoMFR # SOIA-M12PB-PNLK-LESKU # YLS4AQQS4PVMDSB

DesignRound

Conforms to standardEN 60947-5-2

Symbol00997507

Approvalc UL us - Listed (Oil)

Note on materialsRoHS compliant

Measured variablePosition, Displacement

Have questions?Chat on WhatsApp

About This Product

Festo SOIA-M12PB-PNLK-LE

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00997507

Approvalc UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePosition, Displacement

Measuring principleInductive

Measurement methodDistance sensor

Rated operating distance0, 4

Note on rated operating distanceSSC1.SP1: 3.4 mm, SSC2.SP1: 2.0 mm, Factory setting

Displacement measuring range0, 4

Ambient temperature-25, 70

Displacement resolution0.01

Repetition accuracy±0.04 mm

Temperature drift±10%

Switching outputPNP/NPN, switchable, Push-pull

Switching element functionSwitchable

Note on hysteresisFactory setting: 5% FS

Hysteresis1, 20

Linearity error in ± %FS3

Switch-on time100

Measurement range speed1, 1400

Accuracy speed+/- 20% FS

Repetition accuracy speed+/- 5% FS

Acceleration value range-3270, 3270

Max. switching frequency1200

Max. output current100

Voltage drop1

Inductive protective circuitIntegrated

Min. load current0

Off-state current0.03

Short circuit current ratingPulsed

Overload protectionAvailable

ProtocolIO-Link®

IO-Link, revision IDV1.1

IO-Link, device profileFunction Object detection, Function Product URI, Function Teach two values, Identification and diagnostics, Smart Sensor - SSP 4.1.1

IO-Link, transmission rateCOM2

IO-Link, SIO-Mode supportYes

IO-Link, port typeClass A

IO-Link, process data length input32

IO-Link, Process data content INMaintenance warning 1 bit DSC, Motion diagnostic 2 bit DSC

IO-Link, Service data INAcceleration averages 32 bit, Acceleration range 32 bit, Acceleration value 16 bit, Maintenance monitor operating time 32 bit, Maintenance monitor measurement 96 bit, Maintenance monitor temperature 6

IO-Link, minimum cycle time3.2

IO-Link, Data storage required308

Operational voltage range DC10, 30

Note on operational voltage range DC18 - 30 V in IO-Link mode

Residual ripple20%

No-load supply current17

Reverse polarity protectionYes

Electrical connection 1, connection typeCable

Electrical connection 1, number of connections/cores3

Cable length2.5

Cable sheath colourGrey

Material cable sheathPUR

Cable diameter3.8

Nominal cross section conductor0.25

SizeM12

Type of mountingVia lock nut

Tightening torque0, 10

Mounting typeFlush

Product weight67

Housing colourBlue, Grey

Material housingPBT

Material locknutBrass

Reference materialStructural steel, 1.0037, S235JR

Switching status indicationYellow LED

Storage temperature-40, 85

Degree of protectionIP65, IP67

Housing pressure resistance1

Immunity to magnetic fields< 50 µT

Insulation voltage30

Immunity to surge0.5

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L
