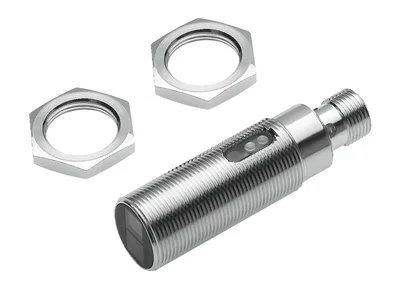

FESTO SOEG-E-M18-NA-S-2L

Receiver. Round design. Electrical connection via open cable end or plug connector

FESTOMFR # SOEG-E-M18-NA-S-2LSKU # CEY-937FC78200F5

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991636

ApprovalRCM, c UL us - Listed (Oil)

Measured variablePosition

Measuring principleOptoelectronic

Have questions?Chat on WhatsApp

About This Product

Receiver. Round design. Electrical connection via open cable end or plug connector

FESTO SOEG-E-M18-NA-S-2L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991636

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodThrough-beam sensor, Receiver

Operating distance20000

Ambient temperature-25, 55

Switching outputNPN

Switching element functionAntivalent

Max. switching frequency1000

Max. output current200

Voltage drop2

Short circuit current ratingPulsed

Operational voltage range DC10, 36

Residual ripple20%

No-load supply current10

Reverse polarity protectionFor all electrical connections

Electrical connectionM12x1, Plug

SizeM18x1

Type of mountingVia lock nut

Tightening torque20

Product weight40

Material housingChrome-plated

Material union nutBrass, Chrome-plated

Switching status indicationYellow LED

Function reserve indicationGreen LED

Ambient temperature with moving cable-5, 55

Degree of protectionIP65, IP67

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 6

Genuine accessories that can be used with the FESTO SOEG-E-M18-NA-S-2L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIEZ-B-18	Sensor bracket · Retainer for proximity sensor
SIEZ-NB-18	Sensor bracket · Retainer for proximity sensor
NEBA-M12W5-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE4	Connecting cable · Connecting cables
