How can I get a price quote for FESTO SOEC-RT-Q50-PS-S-7L?

You can request a fast quote for FESTO SOEC-RT-Q50-PS-S-7L from Yılsa Engineering. Reference part number CEY-937FC781FC94. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SOEC-RT-Q50-PS-S-7L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SOEC-RT-Q50-PS-S-7L genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SOEC-RT-Q50-PS-S-7L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

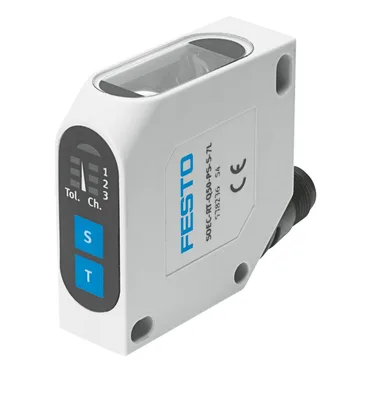

FESTO SOEC-RT-Q50-PS-S-7L

Colour sensor. Diffuse sensor. Block design. Electrical connection via M12x1 plug, 8-pin. Display via 7 LEDs

FESTOMFR # SOEC-RT-Q50-PS-S-7LSKU # CEY-937FC781FC94

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00991617

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Colour sensor. Diffuse sensor. Block design. Electrical connection via M12x1 plug, 8-pin. Display via 7 LEDs

FESTO SOEC-RT-Q50-PS-S-7L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00991617

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodColour sensor

Type of lightWhite

Max. light spotØ 4 mm at a sensing range of 22 mm

Operating distance12, 32

Ambient temperature-10, 55

Switching outputPNP

Switching element functionLight switching

Max. switching frequency500

Max. output current100

Voltage drop2.4

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current40

Reverse polarity protectionFor all electrical connections

Electrical connectionM12x1, Plug

Size50x50x17 mm

Type of mountingWith through-hole

Product weight38

Material housingABS

Ready status indicationGreen LED

Switching status indicationLED

Setting optionsTeach-in, Teach-in via electrical connection

Setting range lower limit12

Setting range upper limit32

Ambient temperature with moving cable-5, 55

Degree of protectionIP67

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 4

Genuine accessories that can be used with the FESTO SOEC-RT-Q50-PS-S-7L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIM-M12-8GD-5-PU	Plug socket with cable · Electrical accessories
SOEZ-HW-Q50	Mounting bracket · Mounting accessories
SIM-M12-8GD-2-PU	Plug socket with cable · Electrical accessories
SIM-M12-8GD-10-PU	Plug socket with cable · Electrical accessories
