How can I get a price quote for FESTO SMTO-4U-NS-K-LED-24?

You can request a fast quote for FESTO SMTO-4U-NS-K-LED-24 from Yılsa Engineering. Reference part number CEY-937FC7825CFD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SMTO-4U-NS-K-LED-24 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SMTO-4U-NS-K-LED-24 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SMTO-4U-NS-K-LED-24?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

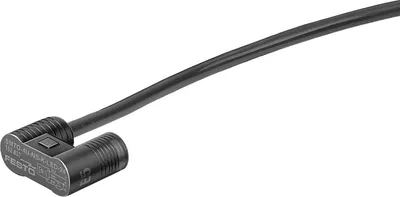

FESTO SMTO-4U-NS-K-LED-24

Proximity sensor. Measuring principle: magneto-inductive. LED switching status indication. Cable length 2.5 m

FESTOMFR # SMTO-4U-NS-K-LED-24SKU # CEY-937FC7825CFD

DesignRound

Based on standardEN 60947-5-2

Symbol00991149

ApprovalRCM

Note on materialsRoHS compliant

Measured variablePosition

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magneto-inductive. LED switching status indication. Cable length 2.5 m

FESTO SMTO-4U-NS-K-LED-24

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Based on standardEN 60947-5-2

Symbol00991149

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagneto-inductive

Ambient temperature-25, 70

Repetition accuracy0.2

Switching outputNPN

Switching element functionN/O contact

Switch-on time5

Switch-off time5

Max. output current200

Max. switching capacity DC6

Voltage drop2

Inductive protective circuitIntegrated

Min. load current0.1

Off-state current0.01

Short circuit current ratingPulsed

Overload protectionAvailable

Operational voltage range DC10, 30

Residual ripple10%

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores3

Connection outlet orientationIn-line

Cable length2.5

Cable characteristicStandard

Cable sheath colourGrey

Material cable sheathPVC

Material insulating sheathPVC

Wire endsTin-plated

Type of mountingWith accessories

Max. tightening torque0.8

Mounting positionAny

Product weight70

Housing colourBlack

Material housingPET

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP67

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 2

Genuine accessories that can be used with the FESTO SMTO-4U-NS-K-LED-24 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
