How can I get a price quote for FESTO SMEO-4U-S-LED-24 B?

You can request a fast quote for FESTO SMEO-4U-S-LED-24 B from Yılsa Engineering. Reference part number CEY-937FC78205BE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SMEO-4U-S-LED-24 B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SMEO-4U-S-LED-24 B genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SMEO-4U-S-LED-24 B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

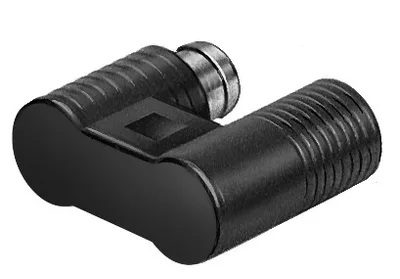

FESTO SMEO-4U-S-LED-24 B

Proximity sensor. Measuring principle: magnetic reed. LED switching status indication. Cable length 2.5, 5 m

FESTOMFR # SMEO-4U-S-LED-24 BSKU # CEY-937FC78205BE

DesignRound

Symbol00991148

ApprovalRCM

Measuring principleMagnetic reed

Ambient temperature-20, 60

Repetition accuracy0.2

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. LED switching status indication. Cable length 2.5, 5 m

FESTO SMEO-4U-S-LED-24 B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Symbol00991148

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Measuring principleMagnetic reed

Ambient temperature-20, 60

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Switch-on time0.5

Switch-off time0.03

Max. switching frequency800

Max. output current500

Max. switching capacity DC10

Inductive protective circuitAdapted to MZ, MY, ME coils

Short circuit current ratingNo

Operational voltage range DC12, 27

Residual ripple10%

Reverse polarity protectionNo

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00991155

Type of mountingWith accessories

Mounting positionAny

Product weight6

Material housingPET

Switching status indicationYellow LED

Degree of protectionIP67

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 11

Genuine accessories that can be used with the FESTO SMEO-4U-S-LED-24 B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
