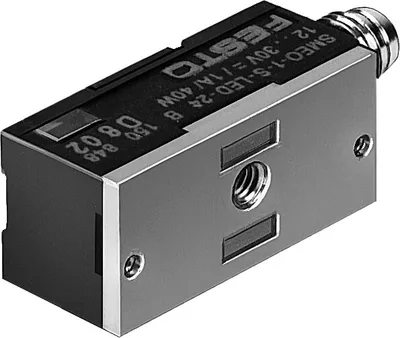

FESTO SMEO-1-S-24-B

Proximity sensor. Measuring principle: magnetic reed. SMEO-1-S6: heat-resistant design. With or without LED switching status indication. Cable length 2.5, 5 m

FESTOMFR # SMEO-1-S-24-BSKU # CEY-937FC7825D5D

DesignBlock design

Symbol00995365

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. SMEO-1-S6: heat-resistant design. With or without LED switching status indication. Cable length 2.5, 5 m

FESTO SMEO-1-S-24-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignBlock design

Symbol00995365

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-20, 70

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Switch-on time0.5

Max. switching frequency500

Max. output current1000

Max. switching capacity AC27

Max. switching capacity DC27

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range DC0, 30

Reverse polarity protectionNo

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00992826

Connection outlet orientationIn-line

Type of mountingWith accessories

Mounting positionAny

Product weight20

Housing colourBlack

Material housingPET, Steel, Die-cast zinc

Ambient temperature with moving cable-5, 70

Degree of protectionIP67

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 9

Genuine accessories that can be used with the FESTO SMEO-1-S-24-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEDY-	Distributor · Electrical accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
