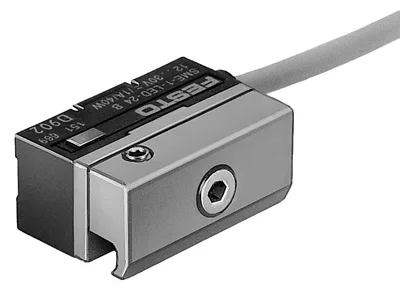

Festo SME-1-LED-24-B

Proximity sensor. Measuring principle: magnetic reed. For mounting kit. With or without LED switching status indication

FestoMFR # SME-1-LED-24-BSKU # CEY-937FC7825DA6

DesignBlock design

Symbol00991145

ApprovalRCM

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagnetic reed

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. For mounting kit. With or without LED switching status indication

Festo SME-1-LED-24-B

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignBlock design

Symbol00991145

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-20, 70

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Switch-on time0.5

Max. switching frequency500

Max. output current1000

Max. switching capacity AC27

Max. switching capacity DC27

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range AC12, 27

Operational voltage range DC12, 27

Reverse polarity protectionNo

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores3

Connection outlet orientationIn-line

Cable length2.5

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingWith accessories

Mounting positionAny

Product weight110

Housing colourBlack

Material housingReinforced PET, Steel, Galvanised steel, Die-cast zinc

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP67

LABS (PWIS) conformityVDMA24364-B2-L
