How can I get a price quote for FESTO SIEF-M8NB-PS-S-L?

You can request a fast quote for FESTO SIEF-M8NB-PS-S-L from Yılsa Engineering. Reference part number CEY-937FC781FA16. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SIEF-M8NB-PS-S-L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SIEF-M8NB-PS-S-L genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SIEF-M8NB-PS-S-L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

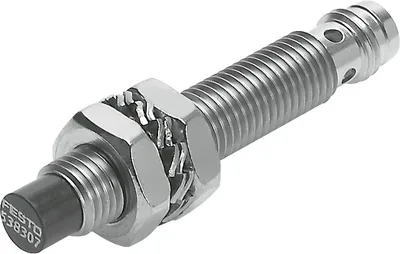

FESTO SIEF-M8NB-PS-S-L

Proximity sensor. Reduction factor 1 for all metals. Welding field immune. Design with housing resistant to welding spatter. Flush, partially flush or non-flush mounting. LED switching status indication

FESTOMFR # SIEF-M8NB-PS-S-LSKU # CEY-937FC781FA16

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

Measuring principleInductive

Rated operating distance4

Have questions?Chat on WhatsApp

About This Product

FESTO SIEF-M8NB-PS-S-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Measuring principleInductive

Rated operating distance4

Assured operating distance3.24

Reduction factorsAluminium = 1.0, Stainless steel St 18/8 = 1.0, Copper = 1.0, Brass = 1.0, Steel St 37 = 1.0

Ambient temperature-30, 85

Repetition accuracy0.08

Switching outputPNP

Switching element functionN/O contact

Hysteresis0.12, 0.6

Max. switching frequency DC2000

Max. output current150

Voltage drop1.8

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current15

Reverse polarity protectionFor all electrical connections

Electrical connectionM8x1, Plug

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

SizeM8

Type of mountingVia lock nut

Tightening torque10

Mounting typeNot flush

Product weight19

Material housingHigh-alloy stainless steel

Switching status indicationYellow LED

Degree of protectionIP67

Immunity to magnetic fieldsMagnetic direct and alternating field

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Additional information for sensor selectionReduction factor 1, resistant to magnetic fields

Electrical outputPNP

Selection of sensor designStandard

Accessories 8

Genuine accessories that can be used with the FESTO SIEF-M8NB-PS-S-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
SMBK-8	Clip · Mounting accessories
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
