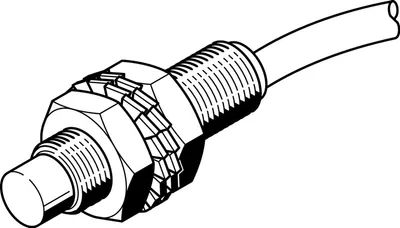

FESTO SIEF-M8NB-PS-K-L

Proximity sensor. Reduction factor 1 for all metals. Welding field immune. Design with housing resistant to welding spatter. Flush, partially flush or non-flush mounting. LED switching status indication

FESTOMFR # SIEF-M8NB-PS-K-LSKU # CEY-937FC781FA15

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991702

ApprovalRCM, c UL us - Listed (Oil)

Measuring principleInductive

Rated operating distance4

Have questions?Chat on WhatsApp

About This Product

FESTO SIEF-M8NB-PS-K-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991702

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Measuring principleInductive

Rated operating distance4

Assured operating distance3.24

Reduction factorsAluminium = 1.0, Stainless steel St 18/8 = 1.0, Copper = 1.0, Brass = 1.0, Steel St 37 = 1.0

Ambient temperature-30, 85

Repetition accuracy0.08

Switching outputPNP

Switching element functionN/O contact

Hysteresis0.12, 0.6

Max. switching frequency DC2000

Max. output current150

Voltage drop1.8

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current15

Reverse polarity protectionFor all electrical connections

Electrical connectionCable

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores3

Cable length2.5

Material cable sheathTPE-U(PUR)

Material insulating sheathPVC

SizeM8

Type of mountingVia lock nut

Tightening torque10

Mounting typeNot flush

Product weight77

Material housingHigh-alloy stainless steel

Switching status indicationYellow LED

Ambient temperature with moving cable0, 80

Degree of protectionIP67

Immunity to magnetic fieldsMagnetic direct and alternating field

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Additional information for sensor selectionReduction factor 1, resistant to magnetic fields

Electrical outputPNP

Selection of sensor designStandard
