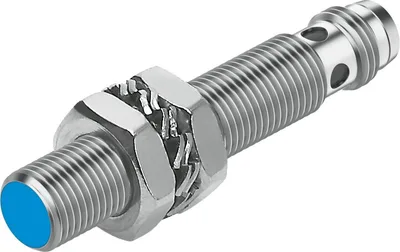

FESTO SIEF-M8B-PS-S-L

Proximity sensor. Reduction factor 1 for all metals. Welding field immune. Design with housing resistant to welding spatter. Flush, partially flush or non-flush mounting. LED switching status indication

FESTOMFR # SIEF-M8B-PS-S-LSKU # CEY-937FC781E2BE

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Rated operating distance1.5

Have questions?Chat on WhatsApp

About This Product

FESTO SIEF-M8B-PS-S-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Note on materialsRoHS compliant

Rated operating distance1.5

Ambient temperature-30, 85

Repetition accuracy0.08

Switching outputPNP

Switching element functionN/O contact

Max. switching frequency DC2000

Max. output current150

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Reverse polarity protectionFor all electrical connections

Electrical connectionM8x1, Plug

Material connector housingChrome-plated

SizeM8

Mounting typeFlush

Product weight12

Material housingHigh-alloy stainless steel

Switching status indicationYellow LED

Degree of protectionIP68

Immunity to magnetic fieldsMagnetic direct and alternating field

Immunity to surge0.8

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Additional information for sensor selectionReduction factor 1, resistant to magnetic fields

Selection of sensor designStandard

Accessories 9

Genuine accessories that can be used with the FESTO SIEF-M8B-PS-S-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
SMBK-8	Clip · Mounting accessories
SIEZ-B-8	Sensor bracket · Mounting kits for proximity sensors, other sensors
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
