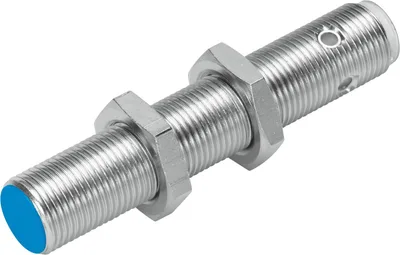

FESTO SIED-M12B-ZS-S-L

Proximity sensor. With standard switching distance. For DC and AC voltage. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

FESTOMFR # SIED-M12B-ZS-S-LSKU # CEY-937FC781FA3A

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991714

ApprovalRCM, c UL us - Listed (Oil)

Measuring principleInductive

Rated operating distance2

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. With standard switching distance. For DC and AC voltage. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

FESTO SIED-M12B-ZS-S-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991714

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

Measuring principleInductive

Rated operating distance2

Assured operating distance1.62

Reduction factorsAluminium = 0.5, Stainless steel St 18/8 = 0.9, Copper = 0.4, Brass = 0.6, Steel St 37 = 1.0

Ambient temperature-25, 85

Repetition accuracy0.1

Switching outputContactless, 2-wire

Switching element functionN/O contact

Hysteresis0.02, 0.44

Max. switching frequency DC1200

Max. switching frequency AC25

Max. output current200

Voltage drop8

Min. load current5

Short circuit current ratingNo

Operational voltage range AC20, 265

Operational voltage range DC20, 320

Mains frequency50

No-load supply current1.5

Reverse polarity protectionFor all electrical connections

Electrical connectionM12x1, Plug

SizeM12

Type of mountingVia lock nut

Tightening torque10

Mounting typeFlush

Product weight20

Material housingnickel-plated

Switching status indicationYellow LED

Degree of protectionIP67

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Additional information for sensor selectionFor DC and AC voltage

Electrical outputContactless, 2-wire

Selection of sensor designStandard

Accessories 8

Genuine accessories that can be used with the FESTO SIED-M12B-ZS-S-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NECB-M12G4-C2	Socket · Electrical accessories
NECB-M12W4-C2	Socket · Electrical accessories
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
HBN-8/10X1	Foot mounting · Mounting accessories
SIEZ-B-12	Sensor bracket · Mounting kits for proximity sensors, other sensors
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
