How can I get a price quote for Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD?

You can request a fast quote for Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD from Yılsa Engineering. Reference part number YLSMQHHASWUKYB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

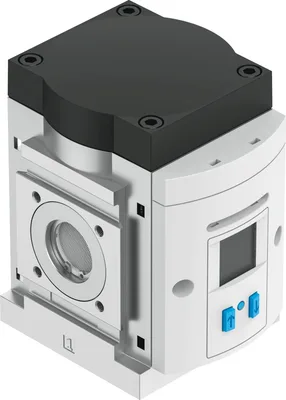

Photo may not represent actual item. Refer to name and product specs for all details.

Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD

Flow sensor. IO-Link® communication with efficient remote parameterisation and replication function. All-in-one solution with integrated pressure and temperature measurement. As a stand-alone device or as a space-saving version in the service unit components of the MS series. Supplies absolute flow information and accumulated air consumption measurements. High accuracy, even at compressed air quality [7:4:4] to ISO 8573. Reliable measurement even of high flow rates. Sustainable operation with system consumption monitoring

FestoMFR # SFAM-90-5000L-M-PNLK-PNVBA-M12-EMDSKU # YLSMQHHASWUKYB

Symbol00997525, 00997562

ApprovalRCM

Note on materialsRoHS compliant

Flow directionUnidirectional, From left to right

Measuring principlethermal

Measurement methodHeat loss

Have questions?Chat on WhatsApp

About This Product

Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00997525, 00997562

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePressure, Mass flow rate, Temperature, Volume, Volumetric flow rate

Flow directionUnidirectional, From left to right

Measuring principlethermal

Measurement methodHeat loss

Start value for pressure measuring range0

End value for pressure measuring range1.6

End value for pressure measuring range16

End value for pressure measuring range232

Start value for flow rate measuring range50

End value for flow rate measuring range5000

Temperature measurement start value0

Temperature measurement end value100

Operating pressure1.6

Operating pressure16

Operating pressure232

Overload pressure2

Overload pressure20

Overload pressure290

Operating mediumArgon, Compressed air to ISO 8573-1:2010 [7:4:4], Carbon dioxide, Nitrogen

Media temperature0, 50

Ambient temperature0, 50

Nominal temperature23

Accuracy of pressure value in ± %FS1.5

Accuracy of flow rate± (3% o.m.v. + 0.3% FS)

Accuracy temperature in ± °C5

Repetition accuracy of pressure value in ± %FS0.3

Repetition accuracy offset in ± %FS0.2

Repetition accuracy span in ± %FS0.8

Temperature coefficient in ± %FS/K0.05

Temperature coefficient span in ± %FS/Ktyp. 0.1%FS/K

Pressure influence span in ± %FS/bar0.5

Switching output2 x PNP or 2 x NPN, switchable

Switching functionWindow comparator or threshold value comparator, adjustable

Switching element functionNC or NO, switchable

Max. output current100

Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V

Flow characteristic curve start value0

Flow characteristic curve end value5000

Temperature characteristic curve start value0

Temperature characteristic curve end value100

Output characteristic curve start value0

Output characteristic curve end value10

Output characteristic curve starting value4

Output characteristic curve end value20

Max. load resistance current output500

Min. load resistance voltage output20

Short circuit current ratingYes

Overload protectionAvailable

ProtocolIO-Link®

IO-Link, revision IDV1.1

IO-Link, device profileFirmware update, Function locator, Function Product URI, Function quantity detection, Identification and diagnostics, Smart Sensor - SSP 4.1.3

IO-Link, transmission rateCOM3

IO-Link, SIO-Mode supportYes

IO-Link, port typeClass A

IO-Link, process data length output0

IO-Link, process data length input96

IO-Link, Process data content INCurrent operating status 4 bit, Monitoring the pressure drop at peak flow 1 bit SSC, Monitoring the pressure drop at medium flow rate 1 bit SSC, Monitoring the pressure stability in active operating s

IO-Link, Service data INVolume/mass measured value 32 bit, Pneumatic energy measurement 32 bit, Pneumatic power measurement 32 bit

IO-Link, minimum cycle time1.5

IO-Link, Data storage required1000

Operational voltage range DC15, 30

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock

Electrical connection 1, connection pattern00995386

Max. cable length20 m with IO-Link® operation, 30 M

Type of mountingOn service unit

Mounting positionAny

Pneumatic connectionManifold module

Product weight600

Material housingDie-cast aluminium, Reinforced PA

Display typeIlluminated LCD, multi-colour

Displayable unitsMPa, bar, kPa, kg, kg/min, l, l/min, m3, m3/h, psi, scfm, scft, °C, °F

Setting optionsIO-Link®, Teach-in, Via display and buttons

Protection against tamperingIO-Link®, PIN code

Setting range threshold value0, 100

Setting range hysteresis0, 90

Degree of protectionIP65

Pressure drop100

Protection classIII

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Accessories 22

Genuine accessories that can be used with the Festo SFAM-90-5000L-M-PNLK-PNVBA-M12-EMD motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GASA-EI-CTR-12M-1	AX Industrial App · Digital services
GASA-EI-CTR-12M-10	AX Industrial App · Digital services
GASA-EI-CTR-12M-20	AX Industrial App · Digital services
GASA-EI-CTR-12M-100	AX Industrial App · Digital services
GASA-EI-CTR-12M-1000	AX Industrial App · Digital services
MS9-WP	Mounting bracket · Mounting accessories
MS9-WPM	Mounting bracket · Mounting accessories
MS9-WPB	Mounting bracket · Mounting accessories
MS9-MV	Module connector · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS9-RMV	Module connector · Mounting accessories
MS9-12-ARMV	Module connector · Mounting accessories
MS9-AGD	Sub-base-SET · Mounting accessories
MS9-AGE	Sub-base-SET · Mounting accessories
MS9-AGF	Sub-base-SET · Mounting accessories
MS9-AGG	Sub-base-SET · Mounting accessories
MS9-AGH	Sub-base-SET · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE5	Connecting cable · Connecting cables
