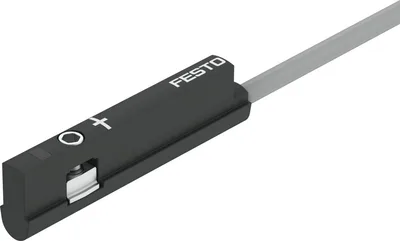

Festo SDAC-MHS-M20-1L-V-E-2.5-LE

Position transmitter. Measuring principle: magnetic Hall. Sensing range up to 35 mm. IO-Link®, 2 programmable switching outputs. Analogue output 0 ... 10 V. Very compact design makes the unit especially well suited to work with grippers, compact cylinders and any application in a tight space. LED status indicator. Cable length 0.3, 2.5 m. Suitable for round slot

FestoMFR # SDAC-MHS-M20-1L-V-E-2.5-LESKU # YLS9V6HBIZVM1XJ

DesignFor C-slot

Symbol00997502

ApprovalRCM

Note on materialsFree of halogen

Measured variablePosition

Measuring principleMagnetic Hall

Have questions?Chat on WhatsApp

About This Product

Festo SDAC-MHS-M20-1L-V-E-2.5-LE

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignFor C-slot

Symbol00997502

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsFree of halogen

Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"

Measured variablePosition

Measuring principleMagnetic Hall

Sensing range25000

Ambient temperature-40, 80

Typical sampling interval2

Max. travel speed4

Displacement resolution0.047

Repetition accuracy0.2

Analogue output0 - 10 V

Sensitivity0.45

Typical linearity error±2 mm

Min. load resistance voltage output10

Short circuit current ratingYes

Overload protectionAvailable

Output signalAnalogue

Operational voltage range DC15, 30

Residual ripple10%

No-load supply current12

Reverse polarity protectionYes

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores3

Connection outlet orientationIn-line

Test conditions cableBending strength: to Festo standard, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Cable length2.5

Cable characteristicSuitable for energy chains/robot applications

Cable sheath colourGrey

Material cable sheathTPE-U(PUR)

Type of mountingScrew-clamped, Inserted into the slot lengthwise

Mounting positionAny

Product weight21

Material housingHigh-alloy stainless steel

Status indicationRed, green LED

Ambient temperature with moving cable-20, 70

Degree of protectionIP65, IP68

LABS (PWIS) conformityVDMA24364-B2-L
