How can I get a price quote for Festo SASC-F5-A-M12-S?

You can request a fast quote for Festo SASC-F5-A-M12-S from Yılsa Engineering. Reference part number YLSLNTVZ641JNOJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SASC-F5-A-M12-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SASC-F5-A-M12-S genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SASC-F5-A-M12-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

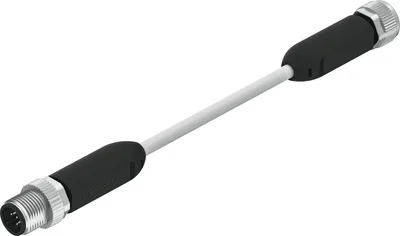

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo SASC-F5-A-M12-S

Adapter

FestoMFR # SASC-F5-A-M12-SSKU # YLSLNTVZ641JNOJ

Conforms to standardEN 61076-2-101

Operational voltage range AC0, 30

Operational voltage range DC0, 30

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Have questions?Chat on WhatsApp

About This Product

Festo SASC-F5-A-M12-S (Adapter) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo SASC-F5-A-M12-S — price, stock availability and technical specifications.

Festo SASC-F5-A-M12-S

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 61076-2-101

Operational voltage range AC0, 30

Operational voltage range DC0, 30

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Degree of protectionIP65

Ambient temperature-25, 85

Product weight30

Electrical connection 1, functionField device side

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, designRound

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, used connections/cores4

Electrical connection 1, connection pattern00991861

Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, terminal allocationPin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK

Electrical connection 1, displayNone

Electrical connection 2, functionControl side

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, designRound

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores4

Electrical connection 2, connection pattern00997355

electrical connection 2, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 2, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 2, terminal allocationPin 1 = BN, Pin 3 = BU, Pin 4 = BK, Pin 5 = WH

Electrical connection 2, displayNone

Cable length0.3

Bending radius, fixed cable14

Cable diameter4.5

Housing colourBlack

Note on materialsFree of halogen, Free of phosphoric acid ester

Material housingTPE-U(PUR)
