How can I get a price quote for FESTO QSPKG20-5/16-U?

You can request a fast quote for FESTO QSPKG20-5/16-U from Yılsa Engineering. Reference part number CEY-937FC7825FA2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO QSPKG20-5/16-U in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO QSPKG20-5/16-U genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO QSPKG20-5/16-U?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

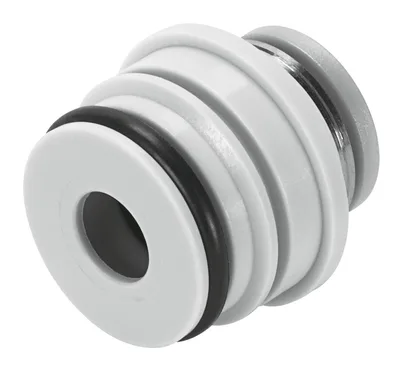

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO QSPKG20-5/16-U

Cartridge. Compact installation space. Threadless mounting. Straight shape, L-shape

FESTOMFR # QSPKG20-5/16-USKU # CEY-937FC7825FA2

SizeStandard

Nominal size5.4

Mounting positionAny

DesignStraight design

Size of pack10

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

Cartridge. Compact installation space. Threadless mounting. Straight shape, L-shape

FESTO QSPKG20-5/16-U

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size5.4

Mounting positionAny

DesignStraight design

Size of pack10

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Maritime classificationSee certificate

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-5, 60

Product weight6

Type of mountingMounting pin

Pneumatic connection, port 1Cartridge 20 mm

Pneumatic connection, port 2For tubing outside diameter of 5/16"

Ambient temperature23, 140

Colour of release ringGrey

Note on materialsRoHS compliant

Material housingReinforced PA

Material release ringPOM

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 12

Genuine accessories that can be used with the FESTO QSPKG20-5/16-U motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-5/16-SW-150-CB	Plastic tubing · Tubes
PUN-H-5/16-BL-1000-HA	Plastic tubing · Tubes
PUN-H-5/16-SW-1000-HA	Plastic tubing · Tubes
PEN-5/16-SW-150-CB	Plastic tubing · Tubes
PEN-5/16-BL-150-CB	Plastic tubing · Tubes
PUN-H-5/16-BL-150-CB	Plastic tubing · Tubes
PUN-H-5/16-NT-150-CB	Plastic tubing · Tubing
PUN-H-5/16-BR-150-CB	Plastic tubing · Tubing
PUN-H-5/16-SI-500-HA	Plastic tubing · Tubing
PLN-5/16-NT-150-CB	Plastic tubing · Tubing
PUN-H-5/16-NT-500-HA	Plastic tubing · Tubing
PTFEN-5/16-NT-150	Plastic tubing · Tubing
