How can I get a price quote for FESTO QSH-4?

You can request a fast quote for FESTO QSH-4 from Yılsa Engineering. Reference part number CEY-937FC7825BFF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO QSH-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO QSH-4 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO QSH-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

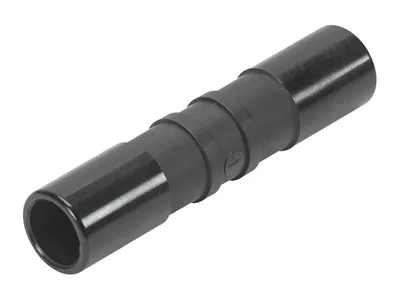

FESTO QSH-4

Push-in sleeve. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTOMFR # QSH-4SKU # CEY-937FC7825BFF

SizeStandard

Nominal size2.5

Mounting positionAny

DesignStraight design

Size of pack10

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

FESTO QSH-4

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size2.5

Mounting positionAny

DesignStraight design

Size of pack10

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1.4

Temperature-dependent operating pressure-0.95, 14

Temperature-dependent operating pressure-13.775, 203

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Ambient temperature-10, 80

Product weight0.5

Pneumatic connection, port 1Push-in sleeve Ø 4 mm

Pneumatic connection, port 2Push-in sleeve Ø 4 mm

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingPBT

Accessories 4

Genuine accessories that can be used with the FESTO QSH-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
