How can I get a price quote for FESTO PUN-14X2-SI?

You can request a fast quote for FESTO PUN-14X2-SI from Yılsa Engineering. Reference part number CEY-937FC781CAA5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO PUN-14X2-SI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO PUN-14X2-SI genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO PUN-14X2-SI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

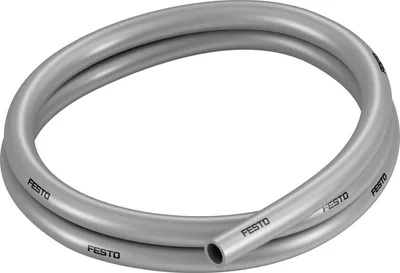

FESTO PUN-14X2-SI

Plastic tubing. Polyurethane. High resistance to stress cracks. Suitable for use with energy chains. Also available as DUO plastic tubing. Operating medium: compressed air, vacuum

FESTOMFR # PUN-14X2-SISKU # CEY-937FC781CAA5

Outside diameter14

Flow-relevant bending radius84

Inside diameter9.8

Min. bending radius45

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1

Have questions?Chat on WhatsApp

About This Product

Plastic tubing. Polyurethane. High resistance to stress cracks. Suitable for use with energy chains. Also available as DUO plastic tubing. Operating medium: compressed air, vacuum

FESTO PUN-14X2-SI

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter14

Flow-relevant bending radius84

Inside diameter9.8

Min. bending radius45

Instructions on useTPE-U, ester-based, The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Otherwise the plastic tubing can get damaged.

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.7

Operating pressure complete temperature range-0.95, 7

Operating pressure complete temperature range-13.775, 101.5

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-35, 60

Product weight according to length0.0949

Pneumatic connectionFor push-in connector outer diameter of 14 mm

ColourSilver

Shore hardnessD 52 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)

Accessories 6

Genuine accessories that can be used with the FESTO PUN-14X2-SI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NPQM-D-G12-Q14-P10	Push-in fitting · Fittings
PKB-50-BL	Spiral wrap for tubing · General accessories
NPQM-L-G12-Q14-P10	Push-in L-fitting · Fittings
ZRS	Pipe and tubing cutter · General accessories
NPQH-L-G38-Q14-P10	Push-in L-fitting · Fittings
NPQH-D-G38-Q14-P10	Push-in fitting · Fittings
