How can I get a price quote for FESTO PLN-16X2-SW?

You can request a fast quote for FESTO PLN-16X2-SW from Yılsa Engineering. Reference part number CEY-937FC781F6AC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO PLN-16X2-SW in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO PLN-16X2-SW genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO PLN-16X2-SW?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

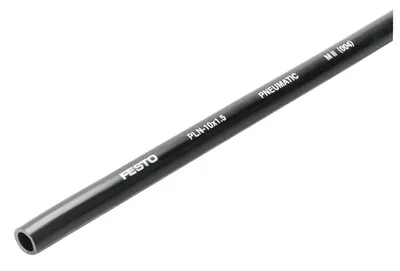

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO PLN-16X2-SW

Plastic tubing. Polyethylene. High resistance to chemicals, microbes and hydrolysis. Food grade see www.festo.com/certificates/PLN. Resistant to most cleaning agents and lubricants. Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/PLN

FESTOMFR # PLN-16X2-SWSKU # CEY-937FC781F6AC

Outside diameter16

Flow-relevant bending radius95

Inside diameter12

Min. bending radius55

Temperature-dependent operating pressure-0.095, 1.4

Temperature-dependent operating pressure-0.95, 14

Have questions?Chat on WhatsApp

About This Product

FESTO PLN-16X2-SW

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter16

Flow-relevant bending radius95

Inside diameter12

Min. bending radius55

Temperature-dependent operating pressure-0.095, 1.4

Temperature-dependent operating pressure-0.95, 14

Temperature-dependent operating pressure-13.775, 203

Note on operating pressureWater: max. 0.8 MPa at 0 - 50 °C

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with foodSee supplementary material information

Ambient temperature-30, 80

Product weight according to length0.082

Pneumatic connectionFor push-in connector O.D. 16 mm

ColourBlack

Note on materialsRoHS compliant

Material tubingPackaging unit

Accessories 4

Genuine accessories that can be used with the FESTO PLN-16X2-SW motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-1/2-16	Push-in fitting · Fittings
QSL-1/2-16	Push-in L-fitting · Fittings
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
