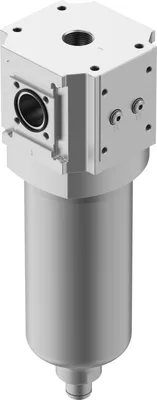

Festo PFML-90-HP3-AST
Micro filter. For high-pressure applications. Food grade www.festo.com/certificates/PFML
SeriesL
Size90
DesignFibre filter
Grade of filtration0.01
Condensate drainManual
Symbol00991519
About This Product
Micro filter. For high-pressure applications. Food grade www.festo.com/certificates/PFML
Festo PFML-90-HP3-AST
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SeriesL
Size90
DesignFibre filter
Grade of filtration0.01
Condensate drainManual
Symbol00991519
Operating pressure0, 5
Operating pressure0, 50
Operating mediumInert gas
Note on operating and pilot mediumLubricated operation not possible
Air purity class at outputCompressed air to ISO 8573-1:2010 [1:4:2]
Max. standard flow rate for clean air class10220
Filter efficiency99.99998
Max. condensate volume200
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitable for use with foodSee supplementary material information
Media temperature5, 60
Ambient temperature5, 60
Storage temperature-10, 60
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
Type of mountingInline installation
Mounting positionVertical +/-5°
Material housingWrought aluminium alloy
Material filterBorosilicate fibre
Material bowlHigh-alloy stainless steel
Material sealsNBR
Note on materialsRoHS compliant
Product weight7700
Volume3
