How can I get a price quote for Festo PEV-1/4-B-M12?

You can request a fast quote for Festo PEV-1/4-B-M12 from Yılsa Engineering. Reference part number CEY-937FC782200A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo PEV-1/4-B-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo PEV-1/4-B-M12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo PEV-1/4-B-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

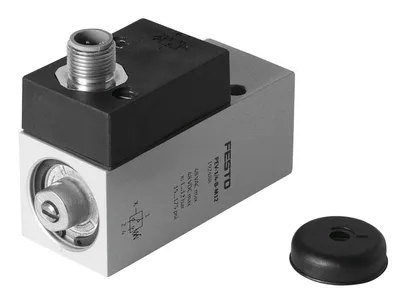

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo PEV-1/4-B-M12

Pressure switch. Mechanical pressure and vacuum switch. Adjustable switching point. Mounting: screw-in, via through-holes or on an H-rail. Visual scale for pressure adjustment. Certification: CCC, c UL us - Recognized (OL), RCM

FestoMFR # PEV-1/4-B-M12SKU # CEY-937FC782200A

Conforms to standardEN 60947-5-1

Symbol00991472

ApprovalCCC, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU Low Voltage Directive

Note on materialsRoHS compliant

Measured variableRelative pressure

Have questions?Chat on WhatsApp

About This Product

Festo PEV-1/4-B-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 60947-5-1

Symbol00991472

ApprovalCCC, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPneumatic/electric pressure transducer

Operating pressure0.1, 1.2

Operating pressure1, 12

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-20, 80

Ambient temperature-20, 80

Switching element functionChangeover switch

Max. switching frequency3

Max. switching output voltage AC48

Max. switching output voltage DC48

Max. output current4000

Min. load current1 mA at 24 V, 10 mA at 10 V, 100 mA at 5 V

Utilisation category - inductive loadAC-14, DC-13

Utilisation category - resistive loadAC-12, DC-12

Electrical connection4-pin, M12x1, Plug, To EN 60947-5-2, Round design

Type of mountingWith through-hole

Mounting positionAny

Pneumatic connectionG1/4

Product weight194

Material housingDie-cast aluminium

Material switch contactSilver

Setting range threshold value1, 12

Degree of protectionIP65

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Accessories 14

Genuine accessories that can be used with the Festo PEV-1/4-B-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/4-10-I	Push-in fitting · Fittings
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
QS-G1/4-10	Push-in fitting · Fittings
NEBA-M12W5-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE4	Connecting cable · Connecting cables
NECB-M12G5-C2	Socket · Electrical accessories
NECB-M12W5-C2	Socket · Electrical accessories
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE4	Connecting cable · Connecting cables
NECB-M12G4-C2	Socket · Electrical accessories
NECB-M12W4-C2	Socket · Electrical accessories
