How can I get a price quote for Festo PCRP-44-G12-12-C-R1-M-T18?

You can request a fast quote for Festo PCRP-44-G12-12-C-R1-M-T18 from Yılsa Engineering. Reference part number YLSGHO9VE2QNUTS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo PCRP-44-G12-12-C-R1-M-T18 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo PCRP-44-G12-12-C-R1-M-T18 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo PCRP-44-G12-12-C-R1-M-T18?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

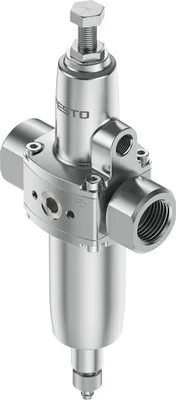

Festo PCRP-44-G12-12-C-R1-M-T18

Filter regulator. Robust housing for the specific requirements of the process automation industry. Suitable for use outdoors and at temperatures down to –60 °C. Resistant to UV radiation and corrosive environments. Two pressure gauge connections for different installation options. With manual condensate drain, rotating. Size 44, 64. Sustainable operation thanks to reduced pressure level

FestoMFR # PCRP-44-G12-12-C-R1-M-T18SKU # YLSGHO9VE2QNUTS

Size44

SeriesP

Actuator lockAdjusting screw with lock

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

Have questions?Chat on WhatsApp

About This Product

Festo PCRP-44-G12-12-C-R1-M-T18

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size44

SeriesP

Actuator lockAdjusting screw with lock

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

DesignFilter regulator without pressure gauge

Conforms to standardNACE MR0175/ISO 15156 (housing and bowl)

Max. condensate volume12

Controller functionWith primary pressure compensation, With secondary exhausting

Symbol00991586

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/4

Operating pressure0.1, 2

Operating pressure1, 20

Pressure regulation range0.5, 12

Max. pressure hysteresis0.2

Max. standard flow rate2400

Standard nominal flow rate (standardised to DIN 1343)1600

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumInert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 80

Air purity class at outputCompressed air to ISO 8573-1:2010 [6:4:4]

Media temperature-20, 80

Ambient temperature-20, 80

Product weight750

Type of mountingWith mounting kit

Pressure gauge connectionG1/4

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Material of drain screwHigh-alloy stainless steel

Material number of drain screw1.4404/316L

Material filter carrierPOM

Note on materialsRoHS compliant

Material mounting bracketHigh-alloy stainless steel

Material sealsCR, NBR

Material springHigh-alloy stainless steel

Material filterPackaging unit

Material housingCast stainless steel

Material number housing1.4409/CF3M(316L)

Material adjusting screwHigh-alloy stainless steel

Material bowlCast stainless steel

Material number of bowl1.4409/CF3M (316L)

Accessories 15

Genuine accessories that can be used with the Festo PCRP-44-G12-12-C-R1-M-T18 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PAMP-MB-44	Mounting bracket · Mounting accessories
MS4-LFP-C	Filter cartridge · General accessories
PAGN-63-16-G14-R1-1.6-0.5-V2	Pressure gauge · Connection accessories
NPQR-DK-G12-Q16	Push-in fitting · Fittings
NPQR-L-G12-Q16	Push-in fitting · Fittings
PTFEN-16X2,5-NT-25	Plastic tubing · Tubes
CRQS-1/2-12-I	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16-I	Push-in fitting · Stainless-steel fittings
NPQP-D-R12-Q12-FD	Push-in fitting · Push-in fittings
NPQP-L-R12-Q12-FD	Push-in L-fitting · Push-in fittings
CRQS-1/2-12	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16	Push-in fitting · Stainless-steel fittings
CRQSL-1/2-12	Push-in L-fitting · Stainless-steel fittings
CRQSL-1/2-16	Push-in L-fitting · Stainless-steel fittings
CRQST-1/2-16	Push-in T-fitting · Stainless-steel fittings
