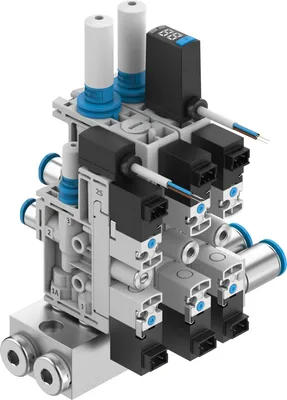

Festo OVTL

Vacuum generator. Module consisting of vacuum generator OVEL, manifold rail and accessories. Select, size and order quickly, easily and reliably with the configurator. Supplied fully assembled

FestoMFR # OVTLSKU # YLSUKH12ZSS1Q4K

Nominal size, Laval nozzle0.45, 0.95

Grid dimension10, 15

Silencer designOpen

Number of device positions2, 8

Mounting positionAny

Ejector characteristicHigh suction rate, High vacuum, Standard

Have questions?Chat on WhatsApp

About This Product

Vacuum generator. Module consisting of vacuum generator OVEL, manifold rail and accessories. Select, size and order quickly, easily and reliably with the configurator. Supplied fully assembled

Festo OVTL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.45, 0.95

Grid dimension10, 15

Silencer designOpen

Number of device positions2, 8

Mounting positionAny

Ejector characteristicHigh suction rate, High vacuum, Standard

Grade of filtration40

Manual overrideNon-detenting

Integrated functionEjector pulse, electrical, Flow control, Pressure sensor, Pressure transmitter, On/off valve, electric, Filter, Open silencer

DesignConnection position on both sides, Connection position on the side

Switching element functionNC or NO, switchable

Switching functionFreely programmable

Symbol00995803, 00995806, 00995807, 00995810

Valve functionClosed

Measurement methodPiezoresistive pressure sensor, Piezoresistive pressure sensor with display

Display typeLED indicator, 2 digits

Setting optionsIO-Link®, Teach-in, Via display and buttons

Operating pressure for max. suction flow rate3, 6

Operating pressure0.2, 0.7

Operating pressure2, 7

Operating pressure29, 101.5

Operating pressure for max. vacuum3.8, 4.5

Max. vacuum89, 92

Nominal operating pressure0.4

Nominal operating pressure4

Nominal operating pressure58

Max. suction flow rate against atmosphere4, 45

Air supply time at nominal operating pressure with ejector pulse0.4, 2

Analogue output0 - 10 V, 1 - 5 V

Operational voltage range DC21.6, 26.4

Duty cycle100%

Switching outputPNP/NPN, switchable

Characteristic coil data24 V DC: 1.28 W, 24 V DC: 1.0 W

Approvalc UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Sound pressure level at nominal operating pressure52, 68

Degree of protectionIP40

Ambient temperature0, 50

Product weight118, 890

Operating voltage range, DC sensor10, 30

Pressure measuring range-0.1, 0

Pressure measuring range-1, 0

Pressure measuring range-14.5, 0

Electrical connection input, functionEjector pulse, Vacuum generation

Electrical connection input, connection type2x plugs

Electrical connection input, connector systemPlug pattern H

Electrical connection input, number of connections/cores2

Electrical connection input, connection pattern00995626

Input electrical connection, mounting typeSnap-locking

Electrical connection output, functionSensor

Electrical connection output, connection typeCable

Electrical connection output, connector systemOpen end

Electrical connection output, number of connections/cores3

Cable characteristicSuitable for energy chains

Cable diameter2.9

Cable diameter tolerance± 0.1 mm

Cable length2.5

Nominal cross section conductor0.14

Type of mountingWith through-hole

Pneumatic connection, port 1For tubing outside diameter of 6 mm, For tubing outer diameter of 8 mm

Pneumatic connection, port 3For tubing O.D. 4 mm, For tubing O.D. 6 mm, Open silencer

Vacuum connectionFor tubing O.D. 3 mm, For tubing outside diameter of 4 mm, For tubing O.D. 6 mm

Cable sheath colourGrey

Material connecting threadPOM

Note on materialsRoHS compliant

Material sub-baseWrought aluminium alloy

Material sealsNBR

Material receiver nozzlePOM

Material filterPOM

Material housingReinforced PA

Material hollow boltWrought aluminium alloy

Material cable sheathPVC

Material adjusting screwSteel

Material silencerReinforced PA

Material screwsSteel

Material transmitter nozzleWrought aluminium alloy

Material fittingBrass, nickel-plated

Accessories 27

Genuine accessories that can be used with the Festo OVTL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CK-1/8-PK-4	Quick connector · Quick connectors
CK-1/8-PK-4-KU	Quick connector · Quick connectors
CN-1/8-PK-4	Barbed fitting · Barbed fittings
CRCN-1/8-PK-4	Barbed fitting · Stainless-steel fittings
QS-1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-V0-1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-1/8-4-I-100	Push-in fitting · Push-in fittings
QS-1/8-4	Push-in fitting · Push-in fittings
QS-1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-8	Push-in fitting · Other connectors
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Other connectors
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
NECU-S-ECG4-HX-Q3	Plug · Electrical accessories
SCDN-2V-EC4-PNLK-L1	Signal converter · General accessories
OAFF-G3-5	Vacuum filter · General accessories
OAFF-G3-7	Vacuum filter · General accessories
