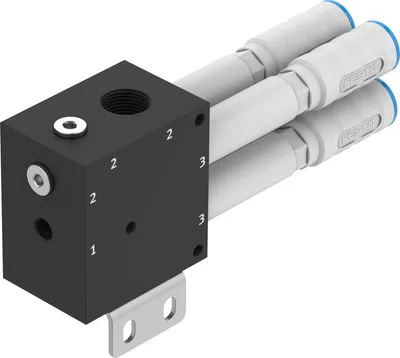

Festo OVPN-26-L3-PG14-G34-UA
Vacuum generator. Vacuum generator with very high suction capacity ideal for porous materials. Nozzle technology with maximum energy efficiency. High initial suction rate. Reduced sound pressure level thanks to an integrated, open silencer. Can be used flexibly for centralised or decentralised vacuum generation. Very lightweight. Sustainable operation thanks to optimised air consumption
Nominal size, Laval nozzle2.6
Grid dimension60
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh suction rate
Integrated functionOpen silencer
About This Product
Vacuum generator. Vacuum generator with very high suction capacity ideal for porous materials. Nozzle technology with maximum energy efficiency. High initial suction rate. Reduced sound pressure level thanks to an integrated, open silencer. Can be used flexibly for centralised or decentralised vacuum generation. Very lightweight. Sustainable operation thanks to optimised air consumption
Festo OVPN-26-L3-PG14-G34-UA
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size, Laval nozzle2.6
Grid dimension60
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh suction rate
Integrated functionOpen silencer
DesignVacuum generator, 3-stage
Symbol00991489
Operating pressure for max. suction flow rate0.8
Operating pressure for max. suction flow rate8
Operating pressure for max. suction flow rate116
Operating pressure0.1, 0.8
Operating pressure1, 8
Operating pressure14.5, 116
Operating pressure for max. vacuum0.79
Operating pressure for max. vacuum7.9
Operating pressure for max. vacuum114.55
Max. vacuum81
Nominal operating pressure0.6
Nominal operating pressure6
Nominal operating pressure87
Max. suction flow rate against atmosphere960
Air supply time at nominal operating pressure0.1
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Media temperature0, 60
Recommended cleaning/purificationSoapsuds (except silencers)
Sound pressure level at nominal operating pressure69
Ambient temperature0, 60
Product weight1000
Type of mountingWith mounting bracket
Pneumatic connection, port 1G1/4
Pneumatic connection, port 3Open silencer
Vacuum connectionG3/4
Material connecting threadPOM
Material sealsNBR
Material receiver nozzleReinforced PA
Material housingPOM
Material silencerReinforced PA, Polyurethane foam
Material screwsHigh-alloy stainless steel
Material transmitter nozzleReinforced PA
