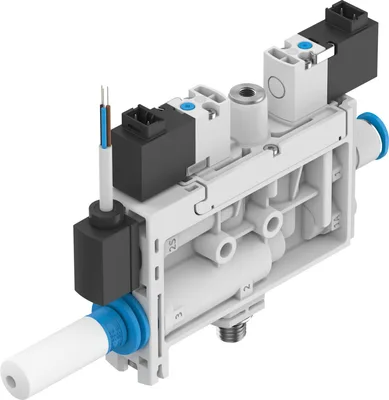

Festo OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3

Vacuum generator. Low-cost, compact vacuum generator. Light weight. Various performance levels and vacuum types. Short switching times thanks to integrated solenoid valves. Quick, precise and safe placement of the workpiece via the ejector pulse. Easy assembly. Minimal installation costs. Sustainable operation thanks to reduced pressure level. RA1 version with robot connection, enables fast integration in lightweight robot environments

FestoMFR # OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3SKU # YLSHQDO6ACOQL6

Nominal size, Laval nozzle0.95

Grid dimension15

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Grade of filtration40

Have questions?Chat on WhatsApp

About This Product

Festo OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.95

Grid dimension15

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Grade of filtration40

Manual overrideNon-detenting

Integrated functionEjector pulse, electrical, Flow control, Pressure transmitter, On/off valve, electric, Filter, Open silencer

DesignT-shape

Symbol00995804

Valve functionClosed

Measurement methodPiezoresistive pressure sensor

Operating pressure for max. suction flow rate0.4

Operating pressure for max. suction flow rate4

Operating pressure for max. suction flow rate58

Operating pressure0.2, 0.7

Operating pressure2, 7

Operating pressure29, 101.5

Operating pressure for max. vacuum0.38

Operating pressure for max. vacuum3.8

Operating pressure for max. vacuum55.1

Max. vacuum92

Nominal operating pressure0.4

Nominal operating pressure4

Nominal operating pressure58

Max. suction flow rate against atmosphere21

Air supply time at nominal operating pressure with ejector pulse1

Analogue output0 - 10 V

Operational voltage range DC21.6, 26.4

Duty cycle100%

Characteristic coil data24 V DC: 1.0 W

Approvalc UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Sound pressure level at nominal operating pressure68

Degree of protectionIP40

Ambient temperature0, 50

Product weight88

Operating voltage range, DC sensor18, 30

Pressure measuring range-0.1, 0

Pressure measuring range-1, 0

Pressure measuring range-14.5, 0

Electrical connection input, functionEjector pulse, Vacuum generation

Electrical connection input, connection type2x plugs

Electrical connection input, connector systemPlug pattern H

Electrical connection input, number of connections/cores2

Electrical connection input, connection pattern00995626

Input electrical connection, mounting typeSnap-locking

Electrical connection output, functionSensor

Electrical connection output, connection typeCable

Electrical connection output, connector systemOpen end

Electrical connection output, number of connections/cores3

Cable characteristicSuitable for energy chains

Cable diameter2.9

Cable diameter tolerance± 0.1 mm

Cable length2.5

Nominal cross section conductor0.14

Type of mountingWith through-hole

Pneumatic connection, port 1For tubing outside diameter of 6 mm

Pneumatic connection, port 3Open silencer

Vacuum connectionM7

Cable sheath colourGrey

Material connecting threadPOM

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material filterPOM

Material housingReinforced PA

Material cable sheathPVC

Material adjusting screwSteel

Material silencerReinforced PA, Packaging unit

Material screwsSteel

Material transmitter nozzleWrought aluminium alloy

Accessories 30

Genuine accessories that can be used with the Festo OVEL-10-H-15-PQ-VM7-UA-C-A-V1V-H3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
SPAE-V1R-PC10-PNLK-2.5K	Pressure sensor · General accessories
SPAE-B2R-PC10-PNLK-2.5K	Pressure sensor · General accessories
PUN-H-6X1-TBL	Plastic tubing · Tubes
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
QS-G1/8-8	Push-in fitting · Fittings
QS-G1/8-8-I	Push-in fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Connecting cables
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Connecting cables
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
NECU-S-ECG4-HX-Q3	Plug · Electrical accessories
SPTE-V1R-PC10-V-2.5K	Pressure transmitter · General accessories
SPTE-V1R-PC10-B-2.5K	Pressure transmitter · General accessories
SPTE-B2R-PC10-V-2.5K	Pressure transmitter · General accessories
SPTE-B2R-PC10-B-2.5K	Pressure transmitter · General accessories
SCDN-2V-EC4-PNLK-L1	Signal converter · General accessories
OABM-P-G3-15-2	Common supply manifold · General accessories
OABM-P-G3-15-4	Common supply manifold · General accessories
OABM-P-G3-15-8	Common supply manifold · General accessories
OAFF-G3-7	Vacuum filter · General accessories
