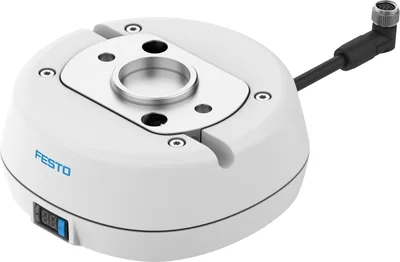

Festo OVEH-10-H-Q6-G18-UA-C-PNLK-SR12-HRC

Vacuum generator. Compact vacuum generator/valve combination with integrated sensors. Can be used with many different cobots and robots thanks to the mechanical robot interface to ISO 9409-1-50-4-M6. Vacuum level monitoring with integrated pressure sensor SPAE. Versatile control via digital I/O (PNP/NPN) or IO-Link®. Valve-controlled ejector impulse for secure handling. For applications with either high vacuum or high suction volume flow. Adapter plate for different applications. For safe human-robot collaboration. Sustainable manufacturing thanks to a compact design and reduced use of materials

FestoMFR # OVEH-10-H-Q6-G18-UA-C-PNLK-SR12-HRCSKU # YLSA1JDTWTLTIJI

Nominal size, Laval nozzle0.95

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Grade of filtration40

Manual overrideNone

Have questions?Chat on WhatsApp

About This Product

Festo OVEH-10-H-Q6-G18-UA-C-PNLK-SR12-HRC

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.95

Silencer designOpen

Mounting positionAny

Ejector characteristicHigh vacuum, Standard

Grade of filtration40

Manual overrideNone

Integrated functionEjector pulse, electrical, Pressure sensor, On/off valve, electric, Filter, Silencer, closed

DesignHuman-robot collaboration (HRC)

Short circuit current ratingYes

Measured variablePressure

Measuring principlePiezoresistive

Switching element functionNC or NO, switchable

Switching functionFreely programmable

Symbol00995804

Valve functionClosed

Reverse polarity protectionYes

Measurement methodPiezoresistive pressure sensor with display

Display typeLED indicator, 2 digits

Setting optionsIO-Link®, Teach-in, Via display and buttons

Switching status indicationYellow LED

Operating pressure for max. suction flow rate0.4

Operating pressure for max. suction flow rate4

Operating pressure for max. suction flow rate58

Operating pressure0.2, 0.7

Operating pressure2, 7

Operating pressure29, 101.5

Operating pressure for max. vacuum0.41

Operating pressure for max. vacuum4.1

Operating pressure for max. vacuum59.45

Max. vacuum92

Nominal operating pressure0.4

Nominal operating pressure4

Nominal operating pressure58

Max. suction flow rate against atmosphere18

Air supply time at nominal operating pressure with ejector pulse1

Operational voltage range DC21.6, 26.4

Duty cycle100%

Max. output current100

Switching outputPNP/NPN, switchable

Characteristic coil data24 V DC: 1.0 W

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Recommended cleaning/purificationSoapy water

Relative air humidityMax. 93% at 40 °C

Sound pressure level at nominal operating pressure55

Sound level at nominal operating pressure66

Degree of protectionIP40

Ambient temperature0, 50

Product weight415

Pressure measuring range-0.1, 0

Pressure measuring range-1, 0

Pressure measuring range-14.5, 0

Accuracy in ± % FS1.5

Reproducibility of switching values FS0.3

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT0 bytes

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring)

IO-Link, Min. cycle time3 ms

IO-Link, Data storage required0.5

Electrical connection 1, connection typeCable with socket

Electrical connection 1, cable outletAngled

Electrical connection 1, designRound

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores8

Electrical connection 1, used connections/cores5

Electrical connection 1, connection pattern00997559

Electrical connection 1, tightening torque0.2

Electrical connection input, functionPower supply, Vacuum generation

Electrical connection output, functionDigital output

Cable characteristicSuitable for robot applications

Cable diameter5

Cable diameter tolerance± 1 mm

Cable length0.3

Protection against tamperingPIN code

Type of mountingWith mounting kit, To ISO 9409

Pneumatic connection, port 1For tubing outside diameter of 6 mm

Pneumatic connection, port 3Open silencer

Vacuum connectionG1/8

Note on vacuum connectionAdditional accessories possible

Cable sheath colourBlack

Material connecting threadAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzlePOM

Material filterPOM

Material housingReinforced PA

Material hollow boltWrought aluminium alloy

Material cable sheathPVC

Material adjusting screwSteel

Material silencerReinforced PA, Packaging unit

Material screwsSteel

Material transmitter nozzleWrought aluminium alloy
