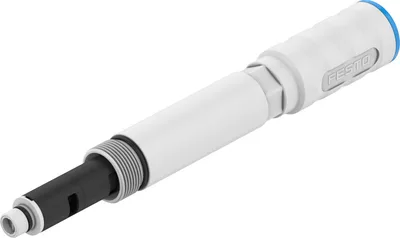

Festo OASP-G4-14-L3-UA
Vacuum generator cartridge. Two- or three-stage vacuum generator cartridge. Can be integrated directly in the suction cup with connection for minimum evacuation times. Available in the version with vacuum generator cartridge only or with retaining cap and integrated silencer. Compact and lightweight
Nominal size, Laval nozzle1.4
Silencer designOpen
Ejector characteristicHigh suction rate
Integrated functionOpen silencer
DesignVacuum generator, 3-stage
Symbol00991489
About This Product
Vacuum generator cartridge. Two- or three-stage vacuum generator cartridge. Can be integrated directly in the suction cup with connection for minimum evacuation times. Available in the version with vacuum generator cartridge only or with retaining cap and integrated silencer. Compact and lightweight
Festo OASP-G4-14-L3-UA
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size, Laval nozzle1.4
Silencer designOpen
Ejector characteristicHigh suction rate
Integrated functionOpen silencer
DesignVacuum generator, 3-stage
Symbol00991489
Operating pressure for max. suction flow rate0.8
Operating pressure for max. suction flow rate8
Operating pressure for max. suction flow rate116
Operating pressure0.1, 0.8
Operating pressure1, 8
Operating pressure14.5, 116
Operating pressure for max. vacuum0.79
Operating pressure for max. vacuum7.9
Operating pressure for max. vacuum114.55
Max. vacuum81
Nominal operating pressure0.6
Nominal operating pressure6
Nominal operating pressure87
Max. suction flow rate against atmosphere245
Air supply time at nominal operating pressure0.37
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Media temperature0, 60
Recommended cleaning/purificationSoapsuds (except silencers)
Sound pressure level at nominal operating pressure60
Ambient temperature0, 60
Product weight123
Type of mountingDirect mounting via thread
Material sealsNBR
Material receiver nozzleReinforced PA
Material silencerReinforced PA, Polyurethane foam
Material transmitter nozzleReinforced PA
Mounting positionAny
