How can I get a price quote for Festo NPQR-D-Q16-E?

You can request a fast quote for Festo NPQR-D-Q16-E from Yılsa Engineering. Reference part number YLSM4EF6O1691X5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NPQR-D-Q16-E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NPQR-D-Q16-E genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NPQR-D-Q16-E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

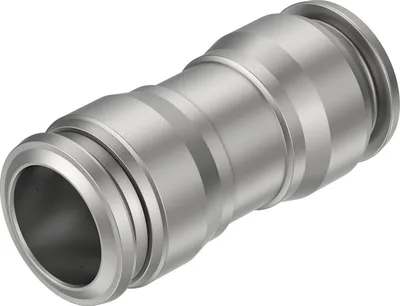

Festo NPQR-D-Q16-E

Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FestoMFR # NPQR-D-Q16-ESKU # YLSM4EF6O1691X5

SizeStandard

Nominal size15

Tubing insertion depth23.5

Mounting positionAny

DesignStraight design

Size of pack1

Have questions?Chat on WhatsApp

About This Product

Festo NPQR-D-Q16-E

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size15

Tubing insertion depth23.5

Mounting positionAny

DesignStraight design

Size of pack1

DesignPush-pull principle

Symbol00997424

Operating pressure complete temperature range-0.095, 1.2

Operating pressure complete temperature range-0.95, 12

Operating pressure complete temperature range-13.775, 174

Note on operating pressureWater: max. 0.7 MPa at 0 - 80 °C

Certificate issuing authorityNSF C0556009

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Suitable for use with foodSee declaration of conformity, NSF/ANSI 169

Ambient temperature-5, 150

Note on ambient temperatureWith PUN-H: -20 °C - 60 °C

Product weight65.6

Pneumatic connection, port 1For tubing outer diameter of 16 mm

Pneumatic connection, port 2For tubing outside diameter of 16 mm

Colour of release ringSilver

Note on materialsRoHS compliant

Material housingHigh-alloy stainless steel

Guard ring materialHigh-alloy stainless steel

Material release ringHigh-alloy stainless steel

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialPPSU

Accessories 51

Genuine accessories that can be used with the Festo NPQR-D-Q16-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-16X2,5-SI	Plastic tubing · Tubing
PUN-16X2,5-BL	Plastic tubing · Tubing
PUN-16X2,5-SW	Plastic tubing · Tubing
PUN-16X2,5-RT	Plastic tubing · Tubing
PUN-16X2,5-GE	Plastic tubing · Tubing
PUN-16X2,5-GN	Plastic tubing · Tubing
PUN-H-16X2,5-NT	Plastic tubing · Tubing
PUN-H-16X2,5-BL	Plastic tubing · Tubing
PUN-H-16X2,5-SW	Plastic tubing · Tubing
PUN-16X2,5-SI-100	Plastic tubing · Tubing
PUN-16X2,5-BL-100	Plastic tubing · Tubing
PEN-16X2,5-SW	Plastic tubing · Tubing
PEN-16X2,5-NT	Plastic tubing · Tubing
PEN-16X2,5-SW-100	Plastic tubing · Tubing
PEN-16X2,5-BL-100	Plastic tubing · Tubing
PEN-16X2,5-SI-100	Plastic tubing · Tubing
PEN-16X2,5-BL	Plastic tubing · Tubing
PEN-16X2,5-SI	Plastic tubing · Tubing
PEN-16X2,5-GN	Plastic tubing · Tubing
PEN-16X2,5-RT	Plastic tubing · Tubing
PEN-16X2,5-GE	Plastic tubing · Tubing
PUN-16X2,5-SW-100	Plastic tubing · Tubing
PUN-H-16X2,5-SW-100	Plastic tubing · Tubing
PUN-H-16X2,5-BL-100	Plastic tubing · Tubing
PUN-H-16X2,5-NT-100	Plastic tubing · Tubing
PUN-H-16X2,5-SI-100	Plastic tubing · Tubing
PUN-H-16X2,5-SI	Plastic tubing · Tubing
PUN-H-16X2,5-RT	Plastic tubing · Tubing
PUN-H-16X2,5-GN	Plastic tubing · Tubing
PUN-H-16X2,5-GE	Plastic tubing · Tubing
PUN-V0-14X2-SW-C	Plastic tubing · Tubing
PUN-V0-14X2-BL-C	Plastic tubing · Tubing
PUN-H-14X2-BL	Plastic tubing · Tubing
PUN-H-14X2-SW	Plastic tubing · Tubing
PUN-H-14X2-NT	Plastic tubing · Tubing
PTFEN-16X2,5-NT-25	Plastic tubing · Tubing
PUN-H-F-14X2-NT	Plastic tubing · Tubing
PUN-H-F-14X2-RT	Plastic tubing · Tubing
PUN-H-F-14X2-BL	Plastic tubing · Tubing
PUN-H-F-14X2-SW	Plastic tubing · Tubing
PUN-H-F-16X2,5-NT	Plastic tubing · Tubing
PUN-H-F-16X2,5-RT	Plastic tubing · Tubing
PUN-H-F-16X2,5-BL	Plastic tubing · Tubing
PUN-H-F-16X2,5-TBL	Plastic tubing · Tubing
PUN-H-F-16X2,5-GN	Plastic tubing · Tubing
PUN-H-F-16X2,5-GE	Plastic tubing · Tubing
PUN-H-F-16X2,5-SW	Plastic tubing · Tubing
PUN-H-SF-14X2,7-SW	Plastic tubing · Tubing
PUN-H-SF-14X2,7-BL	Plastic tubing · Tubing
PUN-H-SF-16X3,1-SW	Plastic tubing · Tubing
PUN-H-SF-16X3,1-BL	Plastic tubing · Tubing
