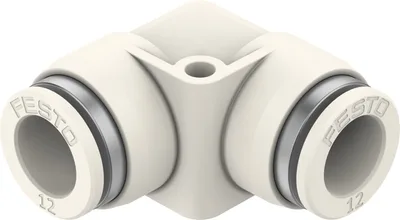

Festo NPQO-L-Q12-E-P5

Push-in L-connector. Oxygen compatibility (in accordance with ISO 15001 and ASTM G93). Biocompatibility (according to ISO 18562). FDA-listed materials. Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar). Wide range from 4 mm to 12 mm in size. Push-in fittings and connections (straight, L-shaped, T-shaped)

FestoMFR # NPQO-L-Q12-E-P5SKU # YLSDV7B9WXTEKE

Nominal size11

Tubing insertion depth22

Mounting positionAny

DesignL-shape

Size of pack5

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

Festo NPQO-L-Q12-E-P5

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size11

Tubing insertion depth22

Mounting positionAny

DesignL-shape

Size of pack5

DesignPush-pull principle

VariantsWith mounting holes

Operating pressure complete temperature range-0.09, 0.3

Operating pressure complete temperature range-0.9, 3

Operating pressure complete temperature range-13.05, 43.5

Temperature-dependent operating pressure-0.09, 1.2

Temperature-dependent operating pressure-0.9, 12

Temperature-dependent operating pressure-13.05, 174

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas, Carbon dioxide, Air, Oxygen, Nitrogen

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Media temperature0, 120

Ambient temperature0, 60

Biocompatibility according to standardISO 18562

Oxygen suitability according to standardASTM G 93, ISO 15001

Maximum impurity level for hydrocarbons550

Product weight33.77

Pneumatic connection, port 1For tubing outer diameter of 12 mm

Pneumatic connection, port 2For tubing outer diameter of 12 mm

Ambient temperature32, 140

Colour of release ringWhite

Note on materialsRoHS compliant

Material housingPVDF

Material release ringPVDF

Material o-ringFluoro rubber

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialPVDF
