How can I get a price quote for Festo NPQM-L-Q14-E-P10-G2?

You can request a fast quote for Festo NPQM-L-Q14-E-P10-G2 from Yılsa Engineering. Reference part number YLSQ8RZOYGBTUXB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NPQM-L-Q14-E-P10-G2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NPQM-L-Q14-E-P10-G2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NPQM-L-Q14-E-P10-G2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

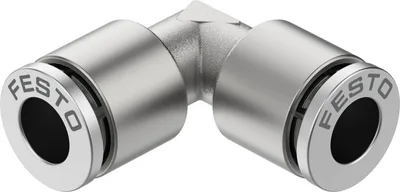

Festo NPQM-L-Q14-E-P10-G2

Push-in L-connector

FestoMFR # NPQM-L-Q14-E-P10-G2SKU # YLSQ8RZOYGBTUXB

SizeStandard

Nominal size12

Tubing insertion depth21.4

DesignL-shape

Size of pack10

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

Festo NPQM-L-Q14-E-P10-G2 (Push-in L-connector) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo NPQM-L-Q14-E-P10-G2 — price, stock availability and technical specifications.

Festo NPQM-L-Q14-E-P10-G2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size12

Tubing insertion depth21.4

DesignL-shape

Size of pack10

DesignPush-pull principle

Temperature-dependent operating pressure-0.095, 1.2

Temperature-dependent operating pressure-0.95, 12

Temperature-dependent operating pressure-13.775, 174

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 70

Product weight56

Pneumatic connection, port 1For tubing outer diameter of 14 mm

Pneumatic connection, port 2For tubing outside diameter of 14 mm

Note on materialsRoHS compliant

Material housingBrass, nickel-plated

Material release ringNickel-plated brass

Material o-ringNBR

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 9

Genuine accessories that can be used with the Festo NPQM-L-Q14-E-P10-G2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-SF-14X2,7-SW	Plastic tubing · Tubing
PUN-H-SF-14X2,7-BL	Plastic tubing · Tubing
PUN-H-F-14X2-BL	Plastic tubing · Tubing
PUN-H-F-14X2-SW	Plastic tubing · Tubing
PUN-H-F-14X2-NT	Plastic tubing · Tubing
PUN-H-F-14X2-RT	Plastic tubing · Tubing
PUN-H-14X2-BL	Plastic tubing · Tubing
PUN-H-14X2-SW	Plastic tubing · Tubing
PUN-H-14X2-NT	Plastic tubing · Tubing
