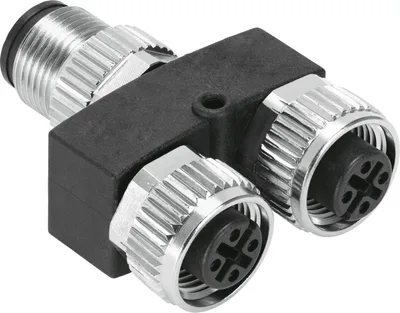

Festo NEDY-L2R1-V1-M12G5-N-M12G4

Distributor. Collecting signals between field devices (sensors) and double-assigned controller inputs. Distributing signals between double-assigned controller outputs and field devices (actuators, e.g. valves)

FestoMFR # NEDY-L2R1-V1-M12G5-N-M12G4SKU # YLSAYWTRJZFYANU

Based on standardEN 61076-2-101

DesignY-distributor without cable

Distrubution2 to 1

Cable designationWithout inscription label holder

Product weight27

Electrical connection 1, functionControl side

Have questions?Chat on WhatsApp

About This Product

Festo NEDY-L2R1-V1-M12G5-N-M12G4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 61076-2-101

DesignY-distributor without cable

Distrubution2 to 1

Cable designationWithout inscription label holder

Type of mountingVia through-hole for M2 screw, With accessories

Product weight27

Electrical connection 1, functionControl side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995386

Electrical connection 2, functionField device side

Electrical connection 2, designRound

Electrical connection 2, connection type2x socket

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores4

electrical connection 2, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 2, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 2, connection pattern00991861

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C4

Immunity to surge0.8

Degree of protectionIP65, IP68, IP69K

Ambient temperature-25, 85

Note on ambient temperature-10 - 40°C with mounting via through-hole

Storage temperature-25, 85

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Pollution degree3

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingTPE-U(PUR)

Housing colourBlack

Material union nutNickel-plated brass

Material sealsNBR

Material electrical contactGold-plated copper alloy

Material threaded sleeveNickel-plated brass
