How can I get a price quote for Festo NECC-S-L16G-C2-P8?

You can request a fast quote for Festo NECC-S-L16G-C2-P8 from Yılsa Engineering. Reference part number YLSXQQMKMFPHPKY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NECC-S-L16G-C2-P8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NECC-S-L16G-C2-P8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NECC-S-L16G-C2-P8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

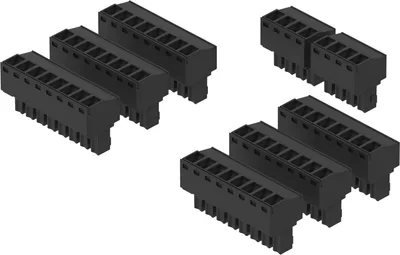

Festo NECC-S-L16G-C2-P8

Assortment of plugs. Encoder plug for motor controller. For controllers. 2-pin, 4-pin, 6-pin, 8-pin, 11-pin, 18-pin

FestoMFR # NECC-S-L16G-C2-P8SKU # YLSXQQMKMFPHPKY

Type of mountingPush-pull

Cable outletStraight

Mounting positionAny

Product weight36.8

Size of pack8

Electrical connectionPlug

Have questions?Chat on WhatsApp

About This Product

Assortment of plugs. Encoder plug for motor controller. For controllers. 2-pin, 4-pin, 6-pin, 8-pin, 11-pin, 18-pin

Festo NECC-S-L16G-C2-P8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Type of mountingPush-pull

Cable outletStraight

Mounting positionAny

Product weight36.8

Size of pack8

Electrical connectionPlug

Electrical connection 1, functionPower supply, Control side

Electrical connection 1, designSquare

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, number of connections/cores8

Electrical connection 1, type of mountingplugged in

Electrical connection 1, connection pattern00995932, 00995935

Electrical connection 2, functionPower supply

Electrical connection 2, designSquare

Electrical connection 2, connection typeTerminal strip

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemScrew terminal

Electrical connection 2, number of connections/cores8

Nominal operating voltage DC24

Current rating at 40° C4

Immunity to surge2.5

Nominal cross section conductor0.14, 1.5

Conductor nominal cross sectionAWG30 - 14

Degree of protectionIP20

Ambient temperature-40, 120

Note on ambient temperature-40 - 105°C for UL applications

Storage temperature-40, 70

Relative air humidity0 - 70%

Overvoltage categoryIII

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Fire testUL94 V-0

Pollution degree2

Corrosion resistance class CRC0 - No corrosion stress

Material housingPA66

Housing colourBlack

Material electrical contactTin-plated copper alloy
